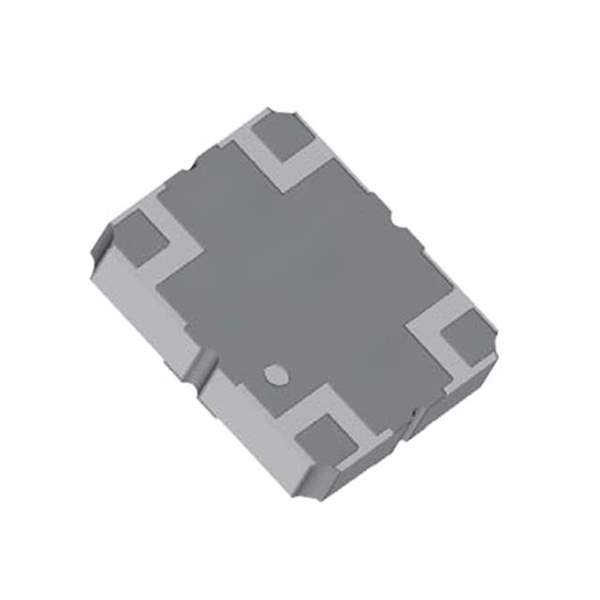

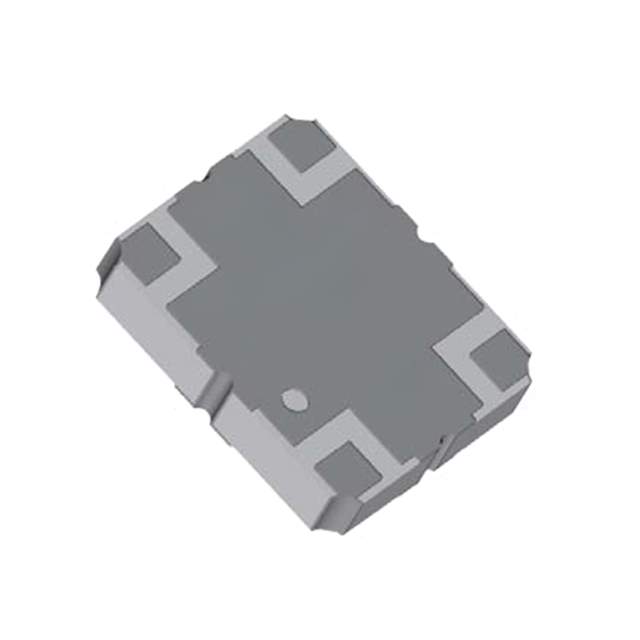

X3C21P1-05S Real Image
Same model may have multiple batches, images only for reference.

X3C21P1-05S

Part No X3C21P1-05S
Manufacturer Anaren
Catalog RF Directional Coupler
Description RF DIR COUPLER 2GHZ-2.3GHZ SMD / RF Directional Coupler General Purpose 2GHz ~ 2.3GHz 5dB 60W 4-SMD, No Lead Exposed Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr TTM Technologies, Inc.
Series Xinger III®
Package Tape & Reel
Coupler Type Standard
Frequency 2GHz ~ 2.3GHz
Coupling Factor 5dB
Applications General Purpose
Insertion Loss 0.15dB
Power - Max 60W
Package / Case 4-SMD, No Lead Exposed Pad
Supplier Device Package SMD
Base Product Number X3C21P1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.79.0000
Other Names 1173-1177,1173-1177-2,1173-1177-1,X3C21P1-05S-ND,1173-1177-ND,1173-1177-6
Standard Package 2,000
Win Source Part Number 991545-X3C21P1-05S
Ultra Librarian 3D Model Ultra Librarian X3C21P1-05S CAD Model

Description

The TTM Technologies X3C21P1-05S is an RF Directional Coupler that belongs to the Xinger III® series.

  • Win Source Part Number: 991545-X3C21P1-05S
  • Suitable for: General-purpose applications
  • Package: 4-SMD, No Lead Exposed Pad
  • Standard Package: 2,000
  • Maximum Power: 60W
  • Frequency Range: 2GHz to 2.3GHz
  • Coupling Factor: 5dB
  • Insertion Loss: 0.15dB
  • RoHS Compliant: Yes
