Analog Devices Inc. Product Overview: OP284FS

The OP284FS is a high-performance operational amplifier (op-amp) from the reputable manufacturer, Analog Devices Inc. This precision op-amp is designed to cater to a wide array of applications, including sensor amplification, active filters, and general-purpose amplification, thanks to its excellent balance of features.

With its single-supply voltage operation ranging from 3V to 36V, or dual supplies of ±1.5V to ±18V, the OP284FS is incredibly versatile and can be integrated into various circuit designs. It is particularly well-suited for battery-powered devices and portable equipment due to its low voltage requirements.

The device boasts a high open-loop gain and a low input offset voltage, which ensures accurate signal amplification with minimal error. Additionally, the OP284FS features a low input bias current, making it ideal for high-impedance applications such as photodiode amplifiers. Its fast slew rate and wide bandwidth contribute to its ability to handle fast signals and higher frequencies without significant distortion, making it an excellent choice for high-speed signal processing tasks.

The OP284FS is also characterized by its low noise performance, which is critical in applications where signal integrity is paramount. With its low total harmonic distortion (THD), the op-amp preserves the quality of the original signal, ensuring high-fidelity amplification.

Thermal stability is another strength of the OP284FS, with its operating temperature range extending from -40°C to +85°C. This makes the op-amp reliable in a variety of environmental conditions, from industrial settings to outdoor applications.

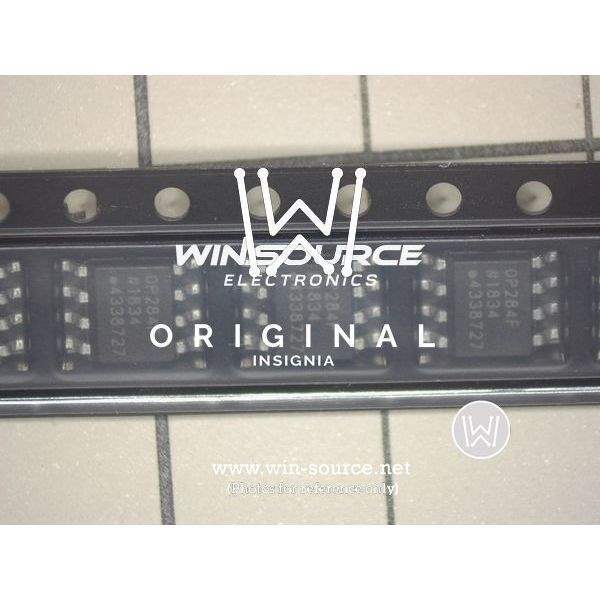

Available in an 8-lead SOIC (Small Outline Integrated Circuit) package, the OP284FS is compact and easy to incorporate into space-constrained designs. Its industry-standard pin configuration simplifies the integration process and allows for easy replacement or upgrades.

In summary, the OP284FS from Analog Devices Inc. is a robust and reliable operational amplifier that offers a combination of low power consumption, high precision, and wide bandwidth. Its flexibility and high-performance characteristics make it an excellent choice for designers seeking a quality op-amp for their electronic projects.
