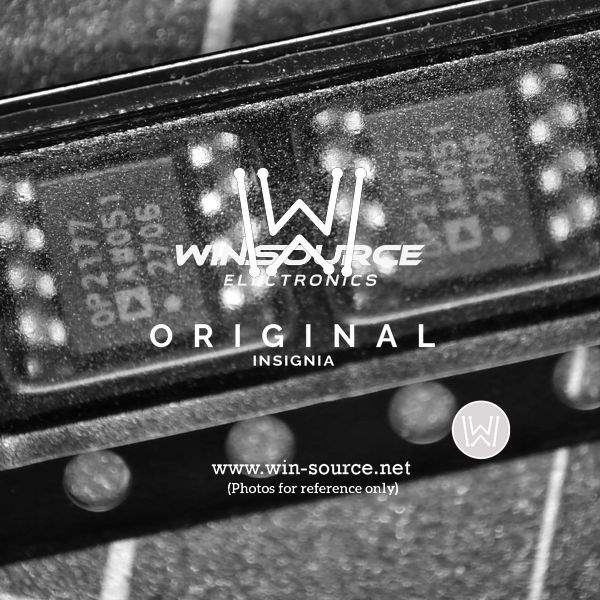

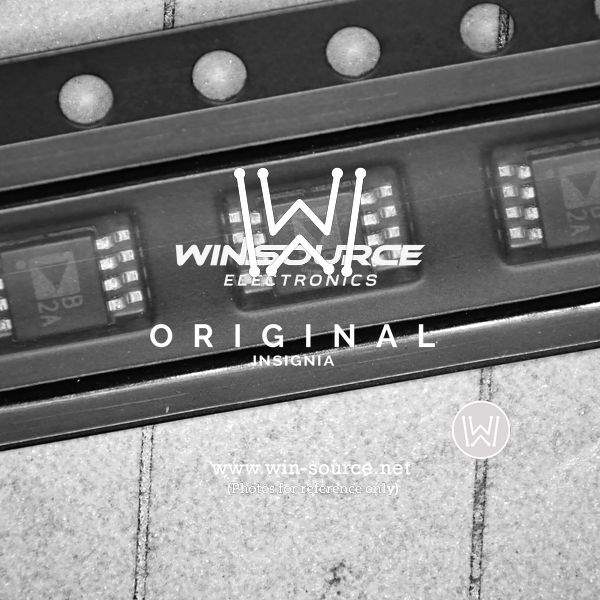

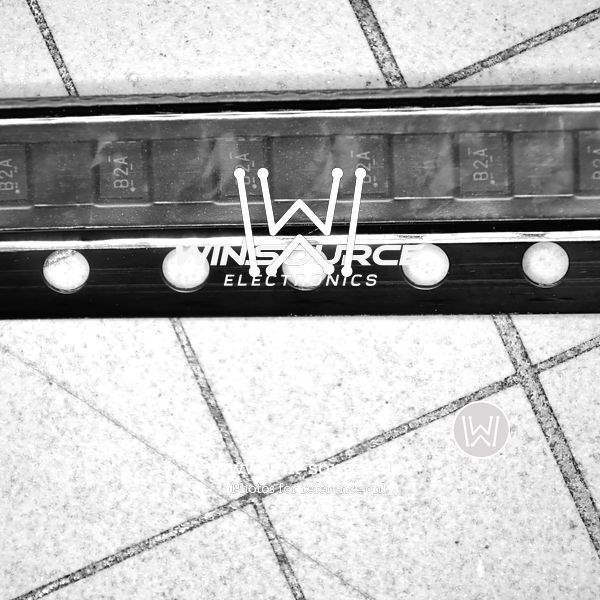

Analog Devices Inc. OP2177ARMZ-R7 Precision Operational Amplifier

The OP2177ARMZ-R7 is a high-precision operational amplifier from the renowned manufacturer Analog Devices Inc., designed to offer excellent accuracy and stability for a wide range of applications. This operational amplifier (op-amp) is part of the OP2177 series, which is known for its low noise, low input bias current, and low power consumption, making it an ideal choice for high-performance industrial, medical, and instrumentation applications.

With its dual supply voltage ranging from ±3 V to ±15 V and a single supply voltage from 5 V to 30 V, the OP2177ARMZ-R7 provides users with flexible power options to suit various system requirements. The device operates over a wide temperature range of -40°C to +125°C, ensuring reliable performance under extreme conditions.

The OP2177ARMZ-R7 features a low offset voltage of just 75 µV and a low input bias current of 1.0 nA, which significantly reduces error in high-impedance sensor signal conditioning. Its low noise density of 8 nV/√Hz at 1 kHz ensures high signal integrity, which is critical in applications such as precision amplification and A/D converter driving.

Furthermore, the op-amp boasts a high open-loop gain of over 130 dB, which contributes to its high accuracy and linearity. The device also has a fast settling time, making it suitable for use in high-speed data acquisition systems and filters.

The OP2177ARMZ-R7 comes in a compact MSOP-8 package, which is ideal for space-constrained applications. The package is RoHS compliant and has been designed for improved thermal performance, ensuring the op-amp remains cool even under heavy loads.

For designers and engineers looking for a reliable and precise operational amplifier, the OP2177ARMZ-R7 from Analog Devices Inc. offers a perfect blend of performance, power efficiency, and versatility. Its robust design and superior specifications make it an excellent choice for ensuring the highest level of accuracy in your electronic designs.

To integrate the OP2177ARMZ-R7 into your projects, Analog Devices provides comprehensive technical documentation, including datasheets and application notes, to assist with the design-in process and ensure a smooth implementation.
