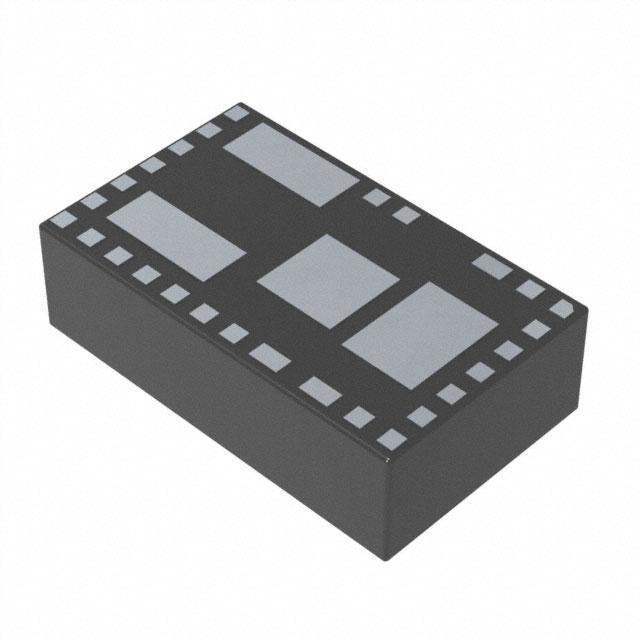

Analog Devices Inc. Presents the MAXM17536ALY# - A Compact, High-Efficiency, Integrated DC-DC Power Module

The MAXM17536ALY# is a state-of-the-art DC-DC power module brought to you by Analog Devices Inc., a leader in the semiconductor industry. This innovative power solution is designed to simplify the power design process and accelerate the time to market for a wide range of applications.

At the heart of this module is a high-efficiency, step-down, switch-mode power supply with an integrated inductor. It is capable of delivering up to 0.5A of continuous output current and operates over a wide input voltage range of 4.5V to 42V, making it highly versatile for various industrial, healthcare, and consumer electronics applications.

Key Features of the MAXM17536ALY#

• Integrated Solution: The module integrates a controller, MOSFETs, an inductor, and compensation components in a compact, low-profile package. This integration reduces design complexity and saves board space, making it ideal for space-constrained applications.
• High Efficiency: With its advanced design, the MAXM17536ALY# achieves high conversion efficiency, which minimizes power loss and improves the overall performance of the end product.
• Wide Input Voltage Range: The broad input voltage range allows for flexibility in powering the module from various sources, including industrial busses and automotive batteries.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.9V to 5.5V to accommodate different requirements, providing a tailored power solution.
• Thermal Protection: The module includes over-temperature protection, enhancing the reliability and longevity of the device under various operating conditions.
• EMI Performance: Designed to meet the stringent EMI requirements of the automotive and industrial markets, the MAXM17536ALY# ensures compliance with regulatory standards.

Applications for the MAXM17536ALY#

The compact size and robust performance of the MAXM17536ALY# make it suitable for a diverse set of applications, including:

• Point-of-Load Power Supplies
• Industrial Control and Automation
• Automotive Infotainment and Navigation
• Telecommunications Equipment
• Healthcare and Medical Devices

With the MAXM17536ALY# power module, Analog Devices Inc. delivers a reliable, efficient, and easy-to-use power solution that meets the needs of today's demanding electronic systems. Its performance and versatility ensure that it is an excellent choice for designers looking to optimize their power architecture while reducing time to market.
