From the renowned manufacturer Analog Devices Inc., the MAX9736AETJ/V+ stands out as a high-performance audio amplifier designed for a multitude of applications. This integrated circuit is part of the MAX9736 series, which is known for delivering exceptional sound quality with low distortion and high efficiency.

Key Features

• Class D Operation: The MAX9736AETJ/V+ operates as a Class D amplifier, ensuring high-efficiency audio amplification with reduced heat dissipation, making it ideal for space-constrained applications.
• High Output Power: It is capable of delivering up to 2 x 15W into 8Ω loads or 2 x 30W into 4Ω loads, providing ample power for a wide range of audio systems.
• Wide Supply Voltage Range: This amplifier can operate across a broad supply voltage range from 8V to 28V, offering flexibility for various design requirements.
• Integrated Protection: The device includes a comprehensive set of protection features such as over-temperature, over-current, and under-voltage lockout, ensuring reliable operation under adverse conditions.
• High-Quality Sound: With its low 0.04% THD+N (Total Harmonic Distortion plus Noise) at 1W into 4Ω, the MAX9736AETJ/V+ provides high-fidelity audio reproduction that is appreciated by audiophiles and casual listeners alike.

Applications

The versatility of the MAX9736AETJ/V+ makes it suitable for a wide array of audio applications. It is commonly used in:

• Home Theater Systems
• Powered Speakers
• Televisions
• Multimedia Monitors
• Portable Audio Systems

Package and Quality

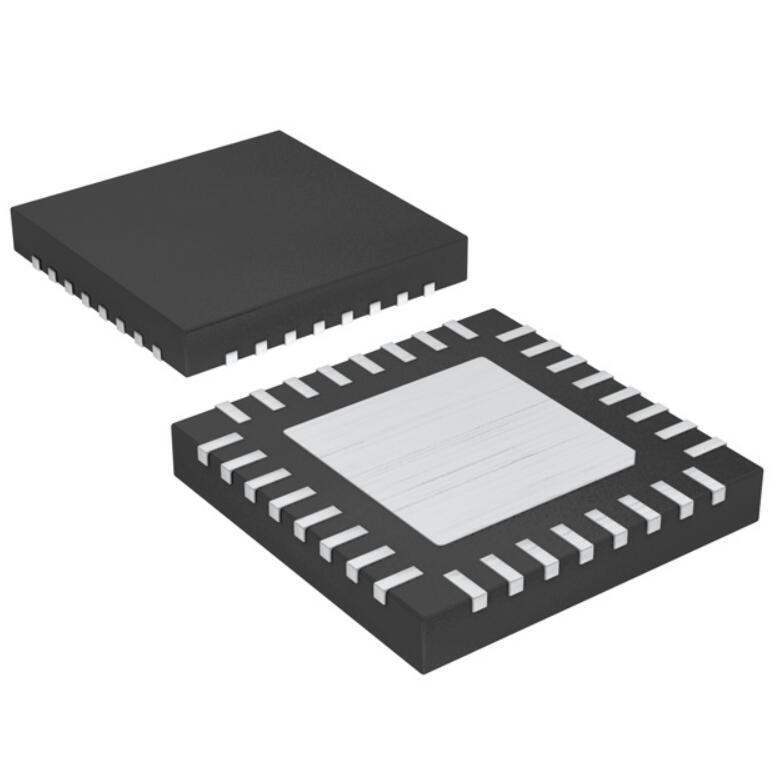

The MAX9736AETJ/V+ comes in a compact 32-pin TQFN (Thin Quad Flat No Leads) package, which is designed to occupy minimal space on a printed circuit board. Analog Devices Inc. ensures that each unit meets rigorous quality standards, providing designers and engineers with a reliable, high-quality audio amplification solution.

Whether you are developing a high-end audio system or looking for a dependable amplifier for your next project, the MAX9736AETJ/V+ by Analog Devices Inc. offers the performance and features to meet your needs.
