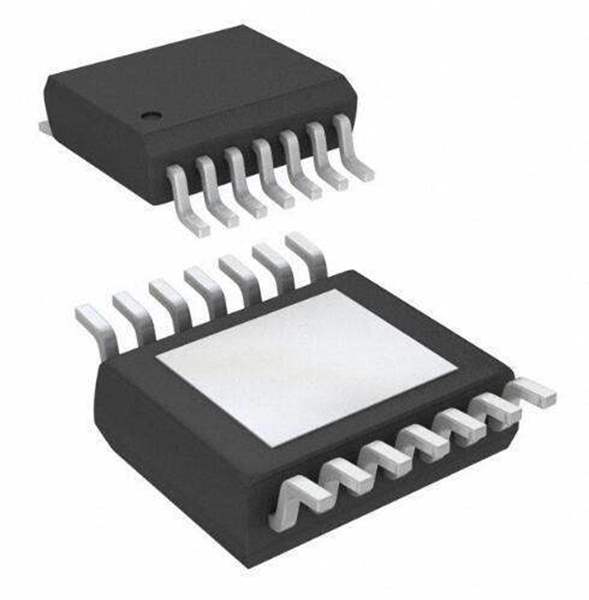

MAX14571EUD/V+ Analog Devices Inc./Maxim Integrated
Same model may have multiple batches, images only for reference.

MAX14571EUD/V+

Part No MAX14571EUD/V+
Manufacturer Analog Devices Inc.
Catalog Surge Suppression ICs
Description ADJUSTABLE OVERVOLTAGE AND OVERC
Datasheet
MAX14571EUD/V+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Analog Devices Inc./Maxim Integrated
Category Circuit Protection Surge Suppression Ics
Packaging  Tube
Part Status Active
Technology Internal Switch
Applications General Purpose
Mounting Type Surface Mount
Package / Case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 14-TSSOP-EP
Win Source Part Number WS1304159-MAX14571EUD/V+
Ultra Librarian 3D Model Ultra Librarian MAX14571EUD/V+ CAD Model

Description

The MAX14571/MAX14572/MAX14573 adjustable overvoltage and overcurrent-protection devices are ideal to protect systems against positive and negative input voltage faults up to ±40V and feature low 100mΩ(typ) RON FETs. The overvoltage-protector (OVP) feature protects voltages between 6V and 36V, while the undervoltage-protector (UVP) feature protects voltages between 4.5V and 24V. The overvoltage-lockout (OVLO) and undervoltage-lockout (UVLO) thresholds are set using optional external resistors. The factory-preset internal OVLO threshold is 33V (typ) and the preset internal UVLO threshold is 19.2V (typ).
