Product Overview: LTM2894HY#PBF from Analog Devices Inc.

The LTM2894HY#PBF is a high-performance, isolated USB transceiver module designed by Analog Devices Inc. to provide a robust communication interface for data transfer in harsh environments. It is part of the LTM2894 series, which is known for its ability to protect sensitive USB data lines from destructive events such as ground loops, surge, and electrostatic discharge (ESD) without the need for external components.

This module features a galvanic isolation barrier that can withstand up to 7500V RMS for 1 minute per UL 1577. This ensures that the data and power domains on either side of the barrier are completely isolated, enhancing system safety and reliability. The LTM2894HY#PBF is designed to operate over a wide temperature range from -40°C to +105°C, making it suitable for industrial applications that require robust performance in extreme conditions.

The LTM2894HY#PBF supports full-speed (12Mbps) USB communication and is compatible with USB 2.0 specifications. It offers an integrated, low EMI, external or bus-powered DC/DC converter, which simplifies the power supply design. The module's small footprint and minimal external components requirement make it an ideal solution for space-constrained applications.

To ensure data integrity, the LTM2894HY#PBF incorporates advanced features such as internal signal processing, which helps to maintain signal fidelity by filtering out noise and correcting for signal skew. The device also includes an automatic speed negotiation feature that allows seamless communication with any USB full-speed device.

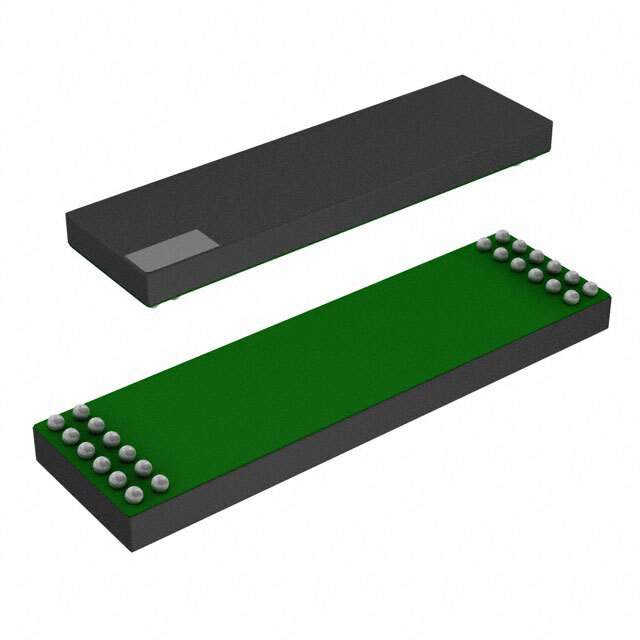

The LTM2894HY#PBF is available in a compact, surface-mountable LGA package that is RoHS compliant. Its rugged design and integrated features make it an excellent choice for applications in industrial control, medical equipment, instrumentation, and any other system where USB communication must be isolated from electrical noise and potential ground differences.

Overall, the LTM2894HY#PBF is a testament to Analog Devices Inc.'s commitment to providing advanced isolation solutions that enhance the performance and safety of electronic systems.
