Analog Devices Inc. LTC5549IUDB#TRPBF Product Overview

The LTC5549IUDB#TRPBF is a high-performance, passive double-balanced mixer from Analog Devices Inc. This mixer is designed to operate within the RF frequency range of 2 GHz to 14 GHz, making it an ideal choice for a variety of applications in the communications, radar, and test equipment sectors. Its high linearity and broad frequency range enable it to be used in both upconversion and downconversion processes within RF systems.

This mixer component boasts an integrated balun structure which simplifies the design process by providing single-ended RF and LO ports. This feature not only reduces the number of external components required but also minimizes the PCB area needed for implementation. The LTC5549IUDB#TRPBF is engineered to deliver excellent LO to RF and LO to IF isolation, thereby reducing potential interference and improving system performance.

Key features of the LTC5549IUDB#TRPBF include its wide IF bandwidth of up to 6 GHz, which allows for versatile use in different IF frequency plans. Its conversion gain is typically 2 dB, which helps maintain signal integrity through the mixing process. The product also exhibits a low noise figure, thereby enhancing the signal-to-noise ratio of the overall system. The device operates over a temperature range of -40°C to 105°C, ensuring reliable performance in a variety of environmental conditions.

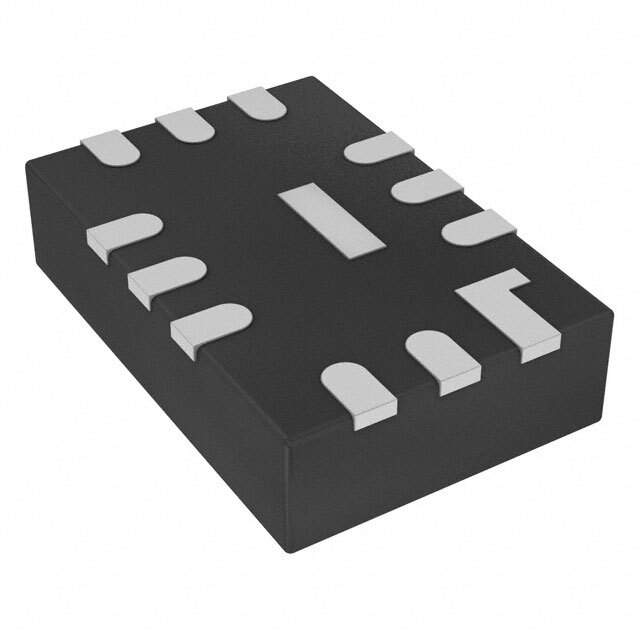

The LTC5549IUDB#TRPBF is housed in a compact 3mm x 2mm DFN package, which is suitable for space-constrained applications. It is available in tape and reel packaging, with the suffix 'TRPBF' indicating lead-free and RoHS-compliant components. This makes it an environmentally friendly option that meets modern regulatory standards for electronic products.

Overall, the LTC5549IUDB#TRPBF from Analog Devices Inc. is a versatile and high-quality mixer that offers a combination of performance, integration, and reliability for designers looking to optimize their RF signal chains.
