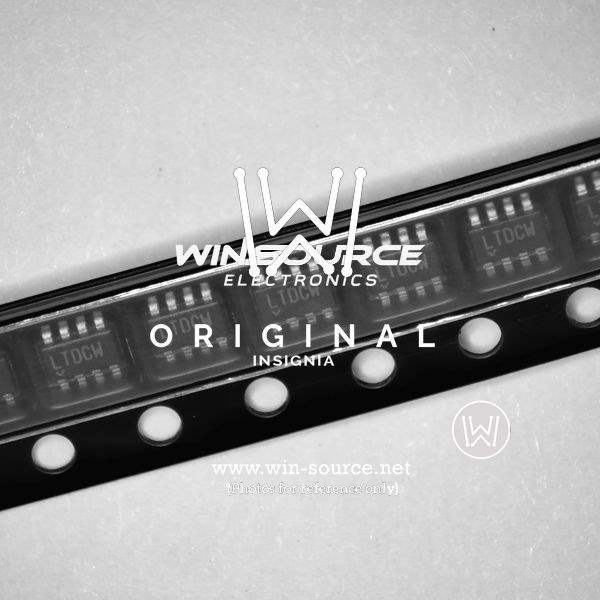

Analog Devices Inc. LTC2916CTS8-1#TRMPBF Precision Hex Supply Monitor

The LTC2916CTS8-1#TRMPBF is a highly reliable and precise hex supply monitor designed by Analog Devices Inc., a leader in the semiconductor industry. This compact component is engineered to keep a vigilant watch over multiple supply voltages in a variety of electronic systems, ensuring that the device operates within safe voltage thresholds.

This precision monitor is housed in a TSOT-23 package, which is known for its small footprint and low-profile design, making it an ideal choice for space-constrained applications. The LTC2916CTS8-1#TRMPBF is capable of monitoring up to six supply voltages, which is particularly useful for complex systems that require multiple power domains to be supervised simultaneously.

One of the standout features of this product is its programmable threshold voltages, which can be set via external resistors. This flexibility allows designers to tailor the monitoring system to the specific needs of their application, ensuring precise and reliable operation. The device also offers an adjustable reset timeout period, giving further control to the system designer.

In terms of performance, the LTC2916CTS8-1#TRMPBF offers a guaranteed threshold accuracy of ±1.5% over the entire operating temperature range of -40°C to 85°C. This high level of precision ensures that the monitored supplies are kept within their safe operating limits, thus protecting the system from potential damage caused by voltage fluctuations.

Additionally, the monitor features a low supply current, which makes it an energy-efficient choice for portable and battery-powered devices. Its wide supply voltage range allows it to be used in various applications, from low-voltage digital systems to higher voltage analog circuits.

For ease of integration, the LTC2916CTS8-1#TRMPBF is available in a Tape and Reel package, denoted by the 'TR' in its part number, making it suitable for automated manufacturing processes. The 'MPBF' suffix indicates that the device is lead-free, catering to environmentally conscious design requirements.

In summary, the LTC2916CTS8-1#TRMPBF from Analog Devices Inc. is a versatile, accurate, and energy-efficient solution for voltage monitoring in complex electronic systems. Its programmability, precision, and small form factor make it an excellent choice for a wide range of applications where multiple supply voltages need to be monitored reliably.
