Analog Devices Inc. LTC2207CUK#PBF High-Speed ADC

The LTC2207CUK#PBF is a high-performance, 16-bit Analog-to-Digital Converter (ADC) from Analog Devices Inc., designed to deliver exceptional accuracy and speed for a wide range of applications, including wireless communications, medical imaging, and test equipment. This ADC is capable of converting analog signals to digital data at rates up to 105Msps (Mega samples per second), providing the high-resolution and fast sampling required for advanced signal processing tasks.

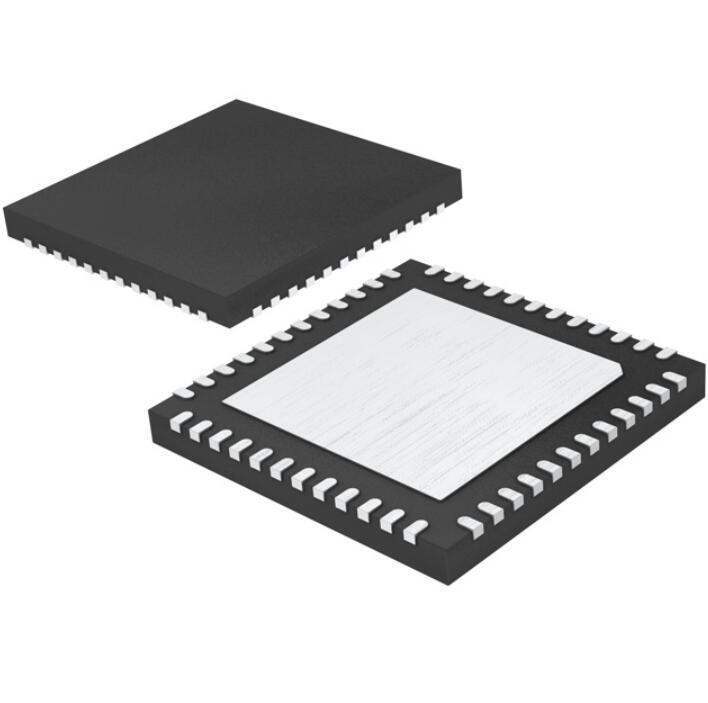

With its 16-bit resolution, the LTC2207CUK#PBF offers a fine level of detail in signal representation, making it ideal for applications where precision is critical. The product comes in a compact QFN (Quad-Flat No-leads) package, which is highly suited for space-constrained applications while offering excellent thermal performance.

Key features of the LTC2207CUK#PBF include:

• High-Speed Operation: With a sampling rate of up to 105Msps, this ADC is well-suited for high-speed signal processing.
• High Resolution: The 16-bit resolution ensures detailed and accurate digital representation of the input signal.
• Low Power Consumption: The device is designed for efficiency, with a power consumption of just 1.25W at the full 105Msps rate.
• Wide Input Bandwidth: The ADC features a wide input bandwidth that supports a variety of signal types and frequencies.
• Digital Output: The LTC2207CUK#PBF provides CMOS or LVDS digital outputs, offering flexibility in interfacing with other digital systems.
• No Missing Codes: Guaranteed performance with no missing codes over the full operating temperature range.

Designed with the user in mind, the LTC2207CUK#PBF also features an easy-to-use SPI port for configuration. This allows for fine-tuning of various parameters such as the output data format and the digital output timing, ensuring that the ADC can be optimized for specific system requirements.

Overall, the LTC2207CUK#PBF by Analog Devices Inc. represents a state-of-the-art solution for designers who require a high-speed, high-precision ADC in their digital signal processing systems. Its robust feature set and exceptional performance make it a versatile choice for a multitude of advanced electronic applications.
