Product Overview: LT1012CJ8 by Analog Devices Inc.

The LT1012CJ8 is a precision, low-power operational amplifier brought to you by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This operational amplifier sets a new standard for precision and reliability, designed to cater to a wide range of applications including test equipment, medical equipment, and professional audio.

Key Features

• High Precision: The LT1012CJ8 boasts an input offset voltage of typically 10µV and a maximum of 30µV, ensuring high accuracy in signal amplification and processing.
• Low Noise: With a low noise density of typically 0.6µVp-p (0.1Hz to 10Hz), the LT1012CJ8 is ideal for applications requiring low noise operations.
• Stability: The device is compensated internally, which allows for a unity-gain stable operation, providing consistent performance over a wide range of conditions.
• Low Power: The operational amplifier exhibits a low supply current of typically 250µA per amplifier, making it suitable for battery-powered and portable applications.
• Wide Supply Range: It operates over a wide supply range of ±2.5V to ±18V, accommodating various application requirements and simplifying power supply design.
• Versatility: The LT1012CJ8 is characterized for operation over the full military temperature range of -55°C to +125°C, ensuring reliable performance in extreme conditions.

Package and Quality

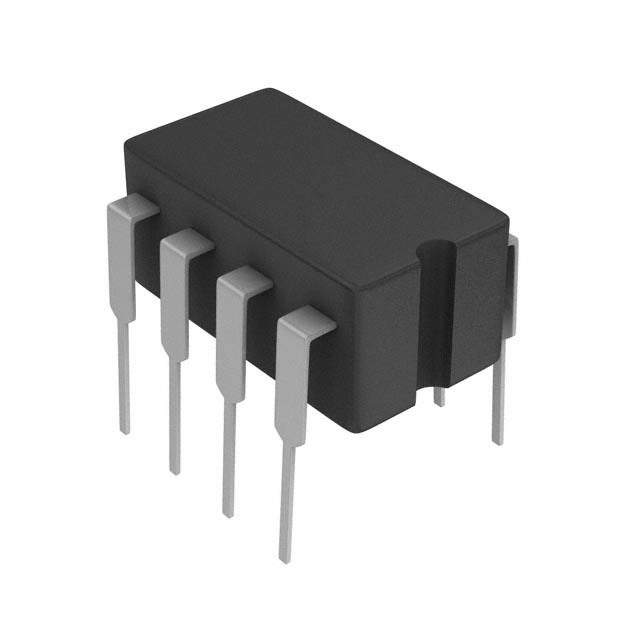

The device comes in an 8-lead CerDIP package, denoted by the suffix 'J8', providing robust physical protection and thermal performance. The LT1012CJ8's construction meets high industry standards, ensuring both durability and longevity for critical applications.

Applications

• Test and Measurement: Precision instrumentation, digital multimeters, and oscilloscopes.
• Medical Devices: Electrocardiograms (ECGs), medical instrumentation, and patient monitoring systems.
• Audio Equipment: Professional mixing consoles, audio amplifiers, and signal processing gear.
• Industrial: Process control systems, temperature controllers, and precision regulators.

With its exceptional precision, low power consumption, and high reliability, the LT1012CJ8 from Analog Devices Inc. is an excellent choice for designers seeking a top-tier operational amplifier for their high-performance applications.
