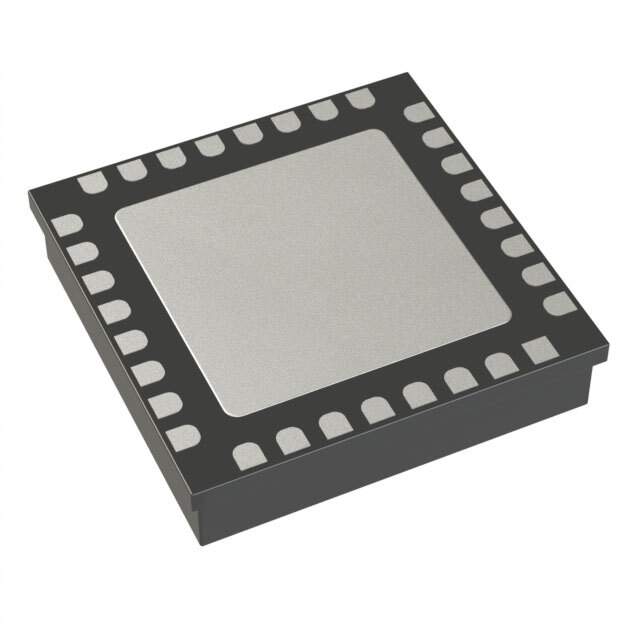

HMC869LC5TR

Part No HMC869LC5TR
Manufacturer Analog Devices Inc.
Catalog RF Demodulators
Description RF DEMOD IC 12GHZ-16GHZ 32SMT / RF Demodulator IC 12GHz ~ 16GHz 32-TFCQFN Exposed Pad
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Demodulators
Mfr Analog Devices Inc.
Package Tape & Reel
Product Status Obsolete
Function Downconverter
LO Frequency 8.5GHz ~ 19.5GHz
RF Frequency 12GHz ~ 16GHz
Noise Figure 2.8dB
Current - Supply 100 mA
Voltage - Supply 3V, 5V
Mounting SMD (SMT)
Package / Case 32-TFCQFN Exposed Pad
Supplier Device Package 32-CSMT (5x5)
Base Product Number HMC869
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1127-1792-1,1127-1792-2,1127-1792-6
Standard Package 100
Win Source Part Number 999467-HMC869LC5TR
Ultra Librarian 3D Model Ultra Librarian HMC869LC5TR CAD Model

Description

The HMC869LC5TR from Analog Devices Inc. is a state-of-the-art RF (Radio Frequency) mixer product, designed to cater to the demanding requirements of modern wireless infrastructure and a variety of RF applications. This mixer is part of the HMC series, known for their high performance and reliability.

Key Features

  • Frequency Range: The HMC869LC5TR operates over a broad frequency range, making it suitable for diverse applications, including those in the microwave spectrum.
  • Conversion Gain: This device offers a high conversion gain, which helps in maintaining signal integrity by boosting the signal strength during the mixing process.
  • LO/RF Isolation: Excellent isolation between the Local Oscillator (LO) and RF ports ensures minimal leakage, thereby preserving signal quality and reducing interference.
  • Low Noise Figure: The low noise figure of the HMC869LC5TR minimizes additional noise in the signal chain, thus maintaining the original signal fidelity as much as possible.
  • Surface-Mount Package: The HMC869LC5TR comes in a compact, surface-mount LC5 package, which is conducive to space-constrained applications and simplifies the PCB design process.

Applications

This versatile mixer finds its use in a broad range of applications, including:

  • Point-to-point and point-to-multipoint radios
  • Military and space applications
  • Test equipment and sensors
  • Communication systems

Quality and Performance

Analog Devices Inc. is renowned for its commitment to quality, and the HMC869LC5TR is no exception. It is designed to meet the rigorous standards of the industry, ensuring performance and durability. With its robust design, this mixer is engineered to withstand challenging environmental conditions while providing consistent, reliable performance.

Ordering Information

The product is available in tape and reel packaging, denoted by the TR suffix, facilitating easy assembly for high-volume production. For detailed specifications and purchasing options, customers are encouraged to visit the Analog Devices Inc. website or contact their sales representatives.
