Analog Devices Inc. Presents the HMC774LC3BTR RF Mixer

The HMC774LC3BTR from Analog Devices Inc. stands as a pinnacle of innovation in the field of RF (Radio Frequency) and microwave technology. This high-performance, passive double-balanced mixer is designed to meet the rigorous demands of modern wireless infrastructure, test and measurement equipment, and military applications. Crafted with precision, the HMC774LC3BTR boasts an exceptional balance of conversion loss, isolation, and linearity.

Key Features of the HMC774LC3BTR

• Frequency Range: The device operates over a broad frequency range, making it versatile for various applications. It supports an RF and LO frequency from 6 to 26 GHz and an IF frequency from DC to 3.5 GHz, accommodating a wide array of signal processing tasks.
• Conversion Loss: With a typical conversion loss of 9 dB, the HMC774LC3BTR ensures that signal integrity is maintained while converting frequencies, providing a clean and reliable signal for further processing.
• LO to RF Isolation: The mixer is engineered with excellent LO to RF isolation of 25 dB typical, minimizing leakage between the local oscillator and the RF path, thus reducing interference and enhancing overall performance.
• Input IP3: The device demonstrates a robust Input Third-Order Intercept Point (IP3) of 22 dBm, indicating its ability to maintain linearity in the presence of strong interfering signals, which is crucial for maintaining signal clarity in dense signal environments.

Compact and Durable Design

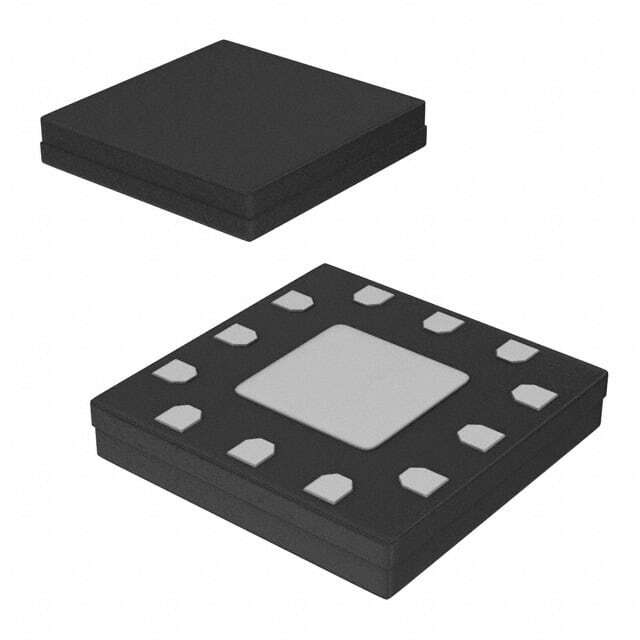

The HMC774LC3BTR is housed in a compact 3x3 mm ceramic QFN package, which not only saves valuable board space but also provides excellent thermal performance. Its robust construction ensures that it can withstand the harsh conditions often encountered in high-reliability applications.

Applications

Given its wide frequency range and exceptional performance characteristics, the HMC774LC3BTR is well-suited for a variety of applications. These include point-to-point and point-to-multipoint radios, military and space, as well as test equipment where high-frequency and high-fidelity signal processing is required.

With the HMC774LC3BTR, Analog Devices Inc. continues to deliver cutting-edge RF components that push the boundaries of performance, size, and reliability. This mixer is a testament to their commitment to providing solutions that enable advanced communication systems.
