Analog Devices Inc. HMC709LC5 Product Overview

The HMC709LC5 from Analog Devices Inc. is a state-of-the-art GaAs pHEMT MMIC Voltage Controlled Oscillator (VCO) designed to meet the needs of high-performance RF systems. This VCO operates within the frequency range of 17.7 GHz to 26.7 GHz, providing a wide tuning range that is essential for applications in point-to-point radios, VSAT, military & space, and test instrumentation.

With its remarkable phase noise performance, the HMC709LC5 ensures signal integrity and high spectral purity, which is crucial for systems requiring high data rates and minimal signal interference. The device also boasts a wide output power range, maintaining a consistent output over its entire operating frequency range, which is a key feature for maintaining signal quality in various operating conditions.

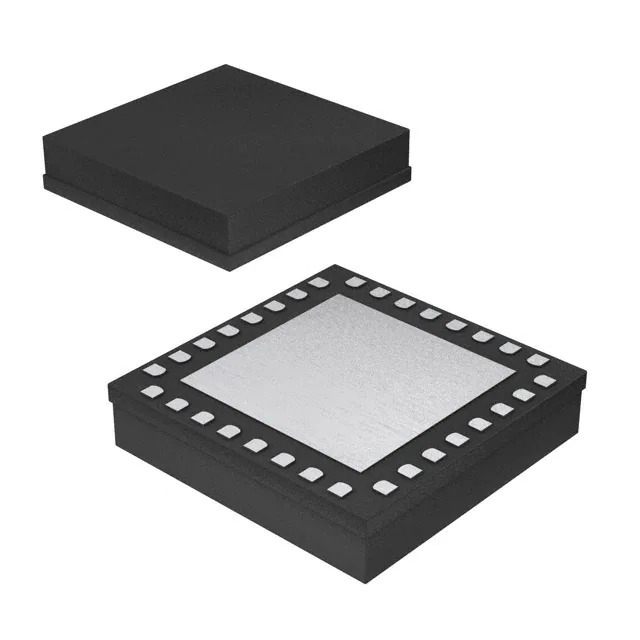

The HMC709LC5 is housed in a compact 5x5mm ceramic SMT package, making it an ideal choice for applications where space is at a premium. Its surface-mount design allows for easier integration into PCBs, facilitating a more streamlined manufacturing process and reducing overall production costs.

Key features of the HMC709LC5 include:

• Frequency Range: 17.7 GHz to 26.7 GHz
• Output Power: +13 dBm to +17 dBm
• Phase Noise: -89 dBc/Hz at 100 kHz offset (for 20 GHz carrier)
• Supply Voltage: +5V
• Integrated resonator
• Buffer amplifier and frequency doubler
• 5x5mm SMT package

Engineers and designers will appreciate the device's integrated resonator, buffer amplifier, and frequency doubler, which reduce the need for external components and simplify the overall design. The HMC709LC5 also requires a single supply voltage of +5V, making power supply design straightforward and minimizing power-related design challenges.

The HMC709LC5 is a testament to Analog Devices Inc.'s commitment to providing innovative, high-performance components for the RF and microwave industries. Its combination of wide frequency range, excellent phase noise characteristics, and compact form factor make it an excellent choice for designers looking to push the boundaries of wireless communication technology.
