Same model may have multiple batches, images only for reference.

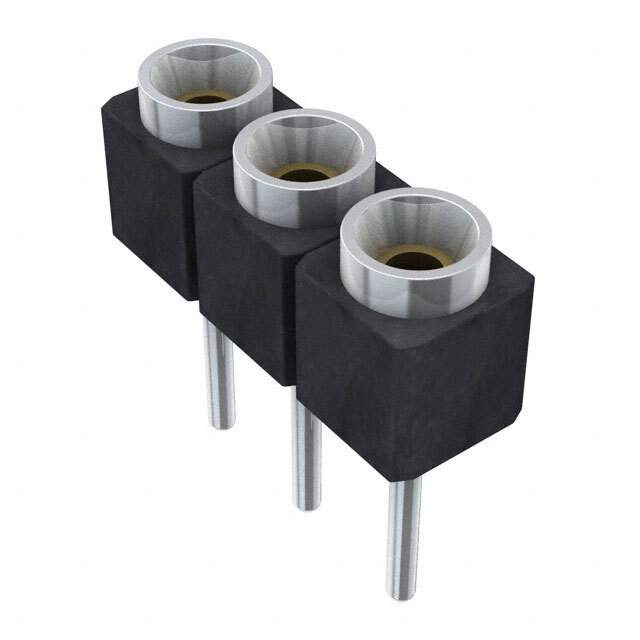

SS-103-T-2-N Real Image
Same model may have multiple batches, images only for reference.

SS-103-T-2-N

Part No SS-103-T-2-N
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SS-103-T-2-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SS
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.100" (2.54mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SS-103
Other Names SAM1118-03
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292172-SS-103-T-2-N
Ultra Librarian 3D Model Ultra Librarian SS-103-T-2-N CAD Model

Description

The 1292172-SS-103-T-2-N is a rectangular connector that belongs to the category of connectors and interconnects.

  • Positions: three positions
  • Series: SS series
  • Connector Type: receptacle type
  • Contact Type: female sockets
  • Positions Loaded: All the positions are loaded
  • Configuration: single row
  • Termination Type: solder
  • Fastening Type: push-pull
  • Packaging: bulk packaging
  • Contact Material: beryllium copper
  • Pitch-Mating: 0.100 inches
  • Contact Finish-Mating: gold
  • Temperature Range: -55°C to 125°C
  • Ideal Use: board to board applications
