Product Overview: HMC565LC5TR by Analog Devices Inc.

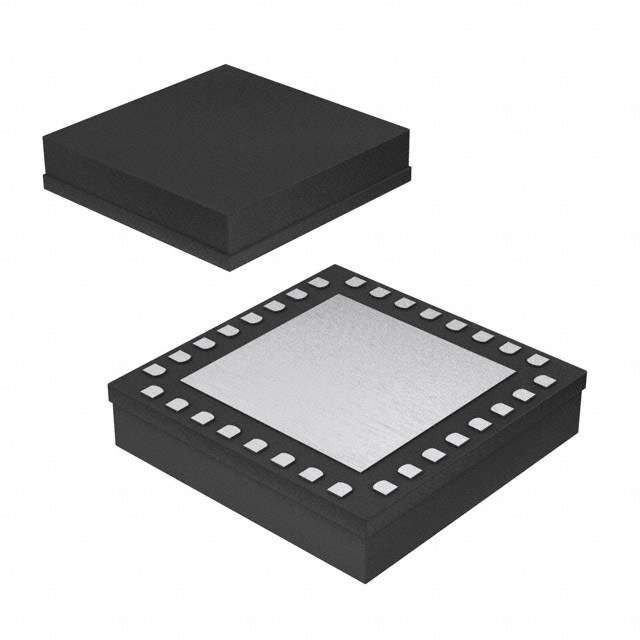

The HMC565LC5TR from Analog Devices Inc. is a high-performance, wideband Double-Balanced Mixer designed to meet the needs of RF and microwave applications. This advanced component is housed in a compact 5x5 mm SMT package, making it an ideal choice for space-constrained designs.

Key Features

• Frequency Range: The HMC565LC5TR operates over a broad frequency range, offering excellent versatility for various applications. It is capable of working within an RF/IF frequency of 6 GHz to 26 GHz, which is suitable for a wide array of communication systems.
• Conversion Loss: With a typical conversion loss of 9 dB, this mixer maintains a balance between conversion efficiency and signal integrity, ensuring reliable performance in critical signal processing tasks.
• LO/RF Isolation: The device boasts excellent LO/RF isolation of 35 dB, minimizing leakage between the local oscillator and the RF signal paths. This feature is crucial for maintaining signal clarity and preventing interference.
• Input IP3: The HMC565LC5TR exhibits a high input third-order intercept point (Input IP3) of 25 dBm, indicating its ability to handle high-power signals without significant distortion.
• Package: The component is available in a RoHS compliant, 5x5 mm SMT package, which is not only space-efficient but also compatible with modern PCB manufacturing processes.

Applications

The versatility of the HMC565LC5TR makes it suitable for a variety of applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Test Equipment and Sensors
• Military and Space
• Telecommunications Infrastructure
• VSAT Systems

Conclusion

Analog Devices Inc.'s HMC565LC5TR is a testament to the company's commitment to providing innovative and reliable RF components. Its wide frequency range, excellent conversion loss, and high isolation levels make it a powerful choice for designers looking to create sophisticated RF and microwave systems. Whether employed in commercial telecommunications or demanding military applications, the HMC565LC5TR stands out as a superior mixer solution.
