Product Overview: HMC558ALC3BTR by Analog Devices Inc.

The HMC558ALC3BTR, from the renowned manufacturer Analog Devices Inc., is a high-performance, passive double-balanced mixer. This sophisticated component is part of Analog Devices' Hittite Microwave Products, which are known for their exceptional quality and reliability in RF and Microwave applications.

Key Features

• Frequency Range: The HMC558ALC3BTR operates over a wide frequency range, making it suitable for various applications, including military, space, and telecommunications.
• Conversion Loss: With a low conversion loss, this mixer maintains signal integrity and provides efficient frequency conversion, which is crucial for high-performance systems.
• Isolation: It offers excellent LO to RF and IF isolation, reducing the potential for signal leakage and ensuring cleaner signal processing.

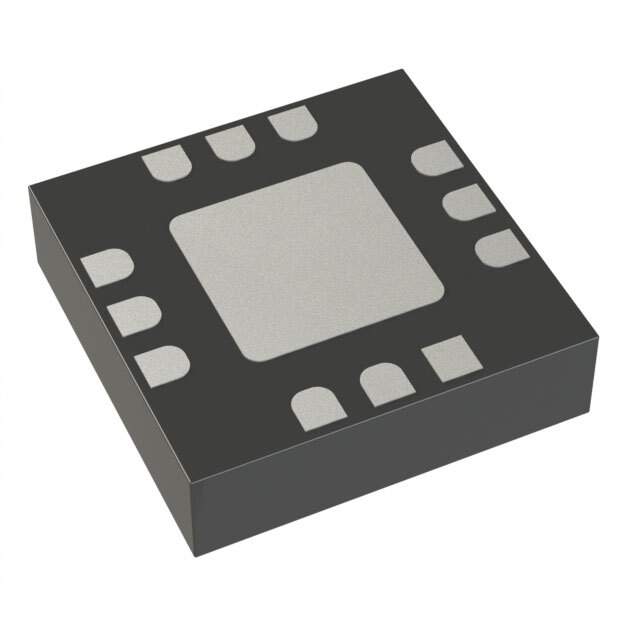

• Package: The device comes in a compact, leadless 3x3 mm surface-mount package, which is ideal for space-constrained applications.
• Integration: As a passive mixer, it requires no external DC bias, simplifying integration into RF systems.

Applications

The HMC558ALC3BTR is designed to meet the needs of a wide range of applications. It is particularly well-suited for:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space applications
• Wireless infrastructure

Technical Specifications

Below are some of the technical specifications that make the HMC558ALC3BTR a choice component for RF and microwave systems:

• RF Frequency Range: 6 GHz to 18 GHz
• LO Frequency Range: 6 GHz to 18 GHz
• IF Frequency Range: DC to 5 GHz
• Conversion Loss: 9 dB typical
• LO to RF Isolation: 25 dB typical
• LO to IF Isolation: 35 dB typical
• IP3 (Input Third Order Intercept): 25 dBm typical

The HMC558ALC3BTR is a testament to Analog Devices Inc.'s commitment to providing cutting-edge technology for complex and demanding RF applications. With its robust performance and flexible operation, it is an ideal choice for designers looking to enhance their RF signal chain.
