Product Overview: HMC557ALC4

The HMC557ALC4, crafted by the renowned semiconductor company Analog Devices Inc., stands as a high-performance, wideband Double-Balanced Mixer. Designed to cater to the needs of RF and microwave applications, this device integrates seamlessly into a variety of systems, including but not limited to point-to-point radios, test equipment, and military applications.

Key Features and Benefits

• Wide Frequency Range: The HMC557ALC4 operates over an extensive frequency range, making it a versatile component for various frequency conversion applications. Its RF and LO frequency ranges from 6 GHz to 26 GHz, while the IF frequency spans from DC to 5 GHz.
• High Isolation: With excellent isolation between its ports, the mixer minimizes signal leakage and maintains signal integrity. This characteristic is crucial for applications where clean signal processing is mandatory.
• Passive Design: As a passive mixer, it does not require a DC power supply, which simplifies the design and reduces power consumption of the overall system.
• Conversion Loss: The device boasts a moderate conversion loss, delivering efficient signal conversion without significant degradation.

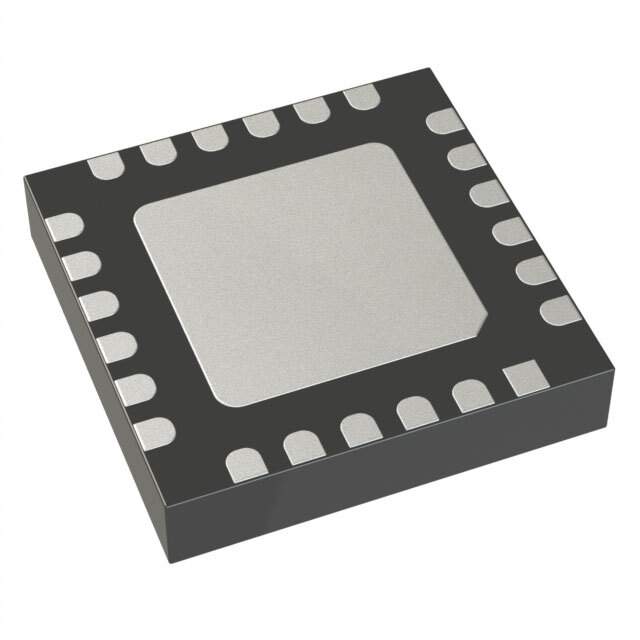

• Package: Housed in a compact 4x4 mm LCC package, the HMC557ALC4 is designed for space-constrained applications while still offering robust performance.

Applications

The HMC557ALC4 is highly suited for a broad spectrum of applications. Its high-frequency operation is ideal for modern high-speed data communication systems. In the realm of defense, it can be utilized in electronic warfare and radar systems, where its wideband capabilities and high isolation are particularly beneficial. Additionally, its performance makes it a strong candidate for integration into test and measurement equipment, providing reliable and accurate frequency conversion for precise testing procedures.

With its combination of wide frequency range, high isolation, and passive operation, the HMC557ALC4 from Analog Devices Inc. is a compelling solution for designers looking to enhance their RF and microwave systems with a high-quality, reliable mixer component.
