Product Overview: HMC554LC3B from Analog Devices Inc.

The HMC554LC3B is a high-performance, GaAs MMIC Double-Balanced Mixer with an IF frequency range from DC to 6 GHz and an RF/LO frequency from 6 to 18 GHz. Manufactured by Analog Devices Inc., a leader in high-performance analog technology, this mixer is designed to provide exceptional signal fidelity and isolation for a wide range of applications including point-to-point and point-to-multipoint radios, military and space, and test equipment.

Key Features

• Wide Frequency Range: The HMC554LC3B operates effectively across a broad spectrum, making it versatile for various applications.
• High Isolation: With excellent isolation between the IF, RF, and LO ports, the mixer ensures minimal crosstalk and interference, preserving signal integrity.
• Passive Double-Balanced Design: This design approach minimizes the need for external components and offers a more straightforward integration into RF systems.

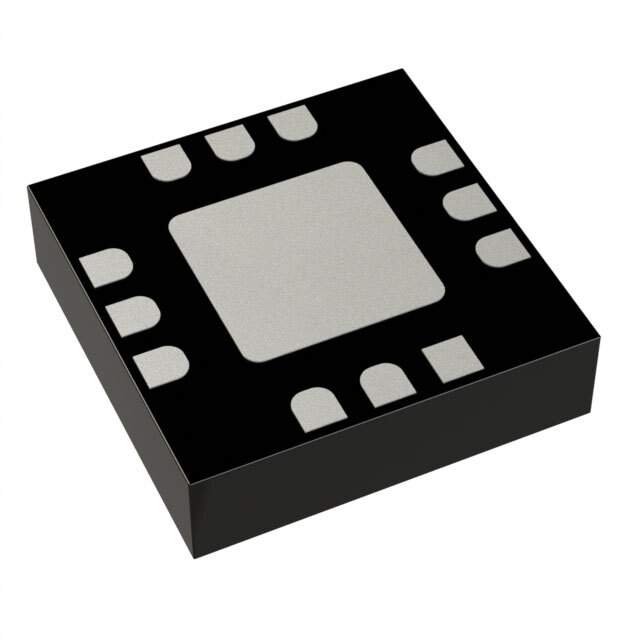

• Compact Form Factor: Housed in a compact 3x3 mm ceramic QFN package, the HMC554LC3B is suitable for space-constrained applications.
• RoHS Compliant: In line with environmental standards, the mixer is RoHS compliant, ensuring it meets global regulatory requirements.

Applications

• Point-to-Point and Point-to-Multipoint Radios
• Military and Space
• Test and Measurement Equipment
• Electronic Warfare
• Communication Systems

The HMC554LC3B from Analog Devices Inc. is a testament to the company's commitment to delivering high-quality components that push the boundaries of performance. For designers and engineers seeking a reliable and efficient mixing solution, the HMC554LC3B offers the perfect blend of functionality and performance in a highly integrated package.

Note: For detailed specifications, technical data, and application support, it is recommended to consult the HMC554LC3B datasheet and Analog Devices Inc.'s technical resources.
