The HMC253QS24ETR is a high-performance, non-reflective SP8T (Single Pole, Eight Throw) RF switch designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This RF switch is an essential component for applications requiring multi-path switching with excellent isolation and low insertion loss.

Key Features

• Frequency Range: The device operates over a broad frequency range from DC to 3 GHz, making it suitable for a wide array of RF applications.
• High Isolation: It provides high isolation (typically 45 dB) between ports, which minimizes crosstalk and ensures signal integrity.
• Low Insertion Loss: With an insertion loss of typically 1.5 dB, the switch maintains signal strength and quality.
• Non-Reflective Design: The non-reflective nature of the switch ensures that signals are not reflected back into the system, preserving signal integrity.
• Single Control Line: The switch can be controlled using a single positive control voltage, simplifying the design and reducing control line complexity.

Applications

The HMC253QS24ETR is ideal for various applications, including:

• Wireless infrastructure (GSM, GPRS, EDGE, UMTS, LTE)
• Test equipment and sensors
• Base station and cellular equipment
• Satellite communication systems
• Fiber optic systems
• RF identification (RFID) systems

Product Specifications

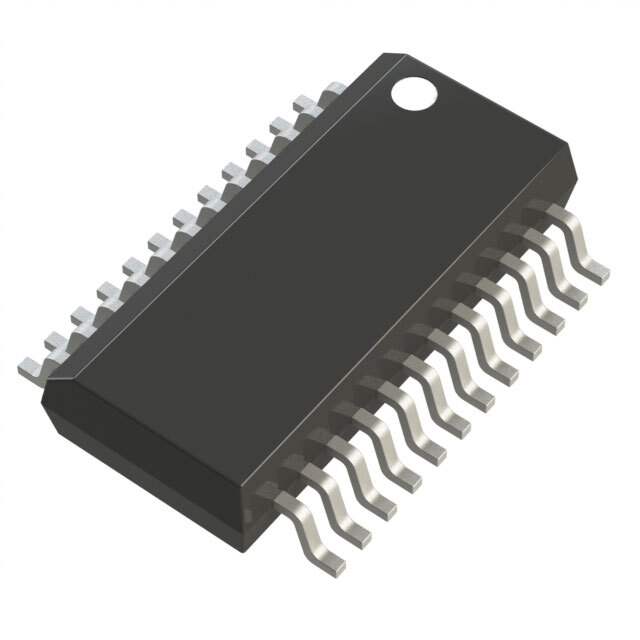

The HMC253QS24ETR comes in a compact QSOP package and is designed for surface mount technology (SMT), facilitating easy integration into a variety of circuit designs. Its performance is characterized by a wide operating temperature range, making it reliable in diverse environments. The switch also features a single positive control voltage, which allows for straightforward interfacing with other components.

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability. The HMC253QS24ETR is built to meet high standards, ensuring stable performance and longevity in demanding applications. The product is available in tape and reel packaging, making it suitable for automated assembly processes and high-volume production.
