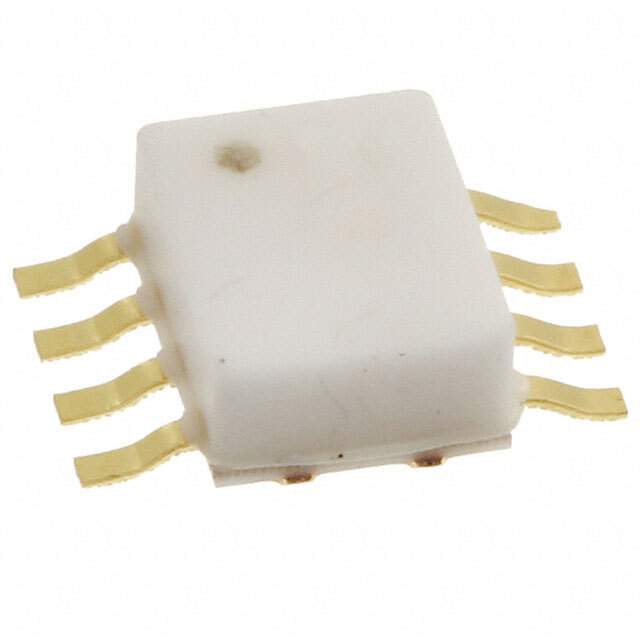

Product Overview: HMC142 - RF Mixer by Analog Devices Inc.

The HMC142 from Analog Devices Inc. is a high-performance, double-balanced mixer designed to meet the demanding requirements of RF and IF signal mixing in various applications. This device is a part of the HMC series, which is renowned for its exceptional quality and reliability in the field of microwave and RF components.

Key Features:

• Frequency Range: The HMC142 operates over a broad frequency range, making it versatile for different RF applications. It supports RF and LO frequencies from 5 to 20 GHz and IF frequencies from DC to 8 GHz.
• Conversion Loss: It offers a low conversion loss, enhancing the overall efficiency of the signal conversion process and ensuring minimal signal degradation.
• Isolation: The device provides excellent LO to RF, LO to IF, and RF to IF isolation, which minimizes crosstalk and improves signal integrity.
• Input Power: The mixer can handle a wide range of input power levels without compromising performance, which is critical for maintaining signal fidelity in various operating conditions.

Applications:

The HMC142 is suitable for a wide array of applications, including but not limited to:

• Point-to-point and point-to-multipoint radios
• Test equipment and sensors
• Military and space applications
• Communication systems

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality, and the HMC142 is no exception. It is fabricated using a GaAs (Gallium Arsenide) MESFET process, which ensures high performance and durability under a wide range of environmental conditions. The device is available in a compact, RoHS-compliant module package, which allows for easy integration into a variety of systems.

Technical Support and Availability:

Analog Devices provides comprehensive technical support for the HMC142, including detailed datasheets, application notes, and design resources to assist engineers in integrating this mixer into their designs. For pricing, availability, and additional information, customers are encouraged to contact Analog Devices or authorized distributors.
