HMC1048ALC3B

Part No HMC1048ALC3B
Manufacturer Analog Devices Inc.
Catalog RF Mixers

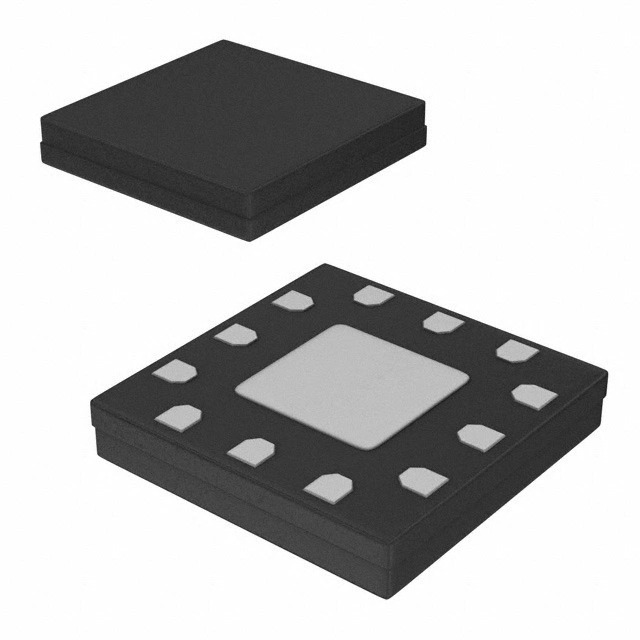

Description IC MIXER DBL BALANCED 12SMD / RF Mixer IC VSAT 2GHz ~ 18GHz 12-CLCC (2.9x2.9)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Mixers
Mfr Analog Devices Inc.
Package Strip
Product Status Active
RF Type VSAT
Frequency 2GHz ~ 18GHz
Number of Mixers 1
Mounting Type Surface Mount
Package / Case 12-CLCC Exposed Pad
Supplier Device Package 12-CLCC (2.9x2.9)
Base Product Number HMC1048
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 812329-HMC1048ALC3B
Ultra Librarian 3D Model Ultra Librarian HMC1048ALC3B CAD Model

Description

Product Overview: HMC1048ALC3B

The HMC1048ALC3B is a high-performance microwave double balanced mixer product by Analog Devices Inc., renowned for their innovative and reliable semiconductor products. This mixer is designed to cater to the demanding requirements of RF and microwave communication systems, offering exceptional frequency conversion performance across a wide range of applications.

Key Features

  • Frequency Range: The HMC1048ALC3B operates over a broad frequency range, making it suitable for various applications in the microwave spectrum.
  • High Isolation: With excellent isolation between its ports, this mixer ensures minimal leakage and interference between signals, providing clear and reliable performance.
  • Conversion Loss: It exhibits a low conversion loss, which means it efficiently converts RF signals to IF (Intermediate Frequency) with minimal signal degradation.
  • Linearity: The mixer provides good linearity, ensuring that signals are converted accurately without introducing significant distortion.
  • Package: Housed in a compact, surface-mount package, the HMC1048ALC3B is designed for easy integration into a wide variety of circuit designs.

Applications

The versatility of the HMC1048ALC3B makes it an ideal choice for a range of applications, including:

  • Point-to-point and point-to-multipoint radios
  • Test equipment and sensors
  • Military and space applications
  • Communication systems

Quality and Reliability

Analog Devices Inc. is committed to delivering high-quality products, and the HMC1048ALC3B is no exception. It is manufactured to meet stringent industry standards, ensuring reliability and performance in even the most challenging environments.

Technical Support and Resources

Customers can access comprehensive technical support for the HMC1048ALC3B, including datasheets, application notes, and design resources, directly through Analog Devices Inc.'s website. Their team of experts is also available to assist with any technical queries or design challenges.
