DC801A Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DC801A

Part No DC801A
Manufacturer Analog Devices Inc.
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS

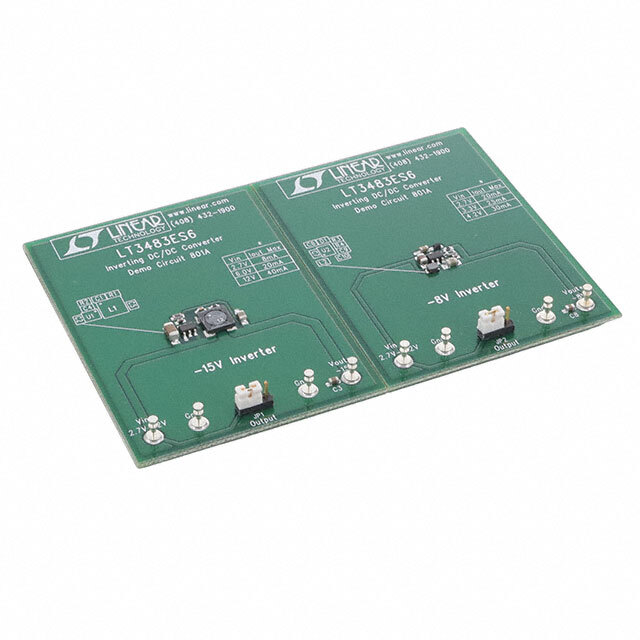

Description LT3483 - 2 Non-Isolated Outputs DC/DC, Step Up Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1481691-DC801A
HTSUS 8473.30.1180
ECCN EAR99
REACH Status REACH Unaffected
MSL Level 1 (Unlimited)
RoHS Status ROHS3 Compliant
Base Product Number DC801
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LT3483
Contents Board(s)
Regulator Topology Inverting
Voltage - Input 2.7V ~ 12V
Current - Output 40mA, 30mA
Voltage - Output -8V, -15V
Outputs and Type 2 Non-Isolated Outputs
Main Purpose DC/DC, Step Up
Packaging Box
Manufacturer Analog Devices Inc.
Ultra Librarian 3D Model Ultra Librarian DC801A CAD Model
