Analog Devices Inc. LTM8002HY: A Robust Step-Down µModule Regulator

The LTM8002HY from Analog Devices Inc. is a high-efficiency, step-down DC/DC µModule® (micromodule) regulator designed to meet the rigorous demands of various applications ranging from industrial to automotive systems. This compact, all-in-one power management solution integrates the inductor, power switches, DC/DC controller, and other supporting components within a single package, simplifying the design process and accelerating time-to-market for product developers.

With an operating input voltage range of 3.4V to 40V, the LTM8002HY is capable of delivering a continuous output current up to 2.5A, making it suitable for a wide array of uses, including but not limited to, point-of-load applications, distributed power systems, and intermediate bus voltages. It provides an adjustable output voltage range from 0.97V to 18V, which can be set by a single external resistor, offering designers the flexibility to cater to various output requirements.

The LTM8002HY boasts a high switching frequency of up to 3MHz, which allows for a smaller overall solution size due to the use of smaller external components. Despite its compact footprint, the device does not compromise on performance, offering up to 93% efficiency, which is critical for thermal management and energy savings in space-constrained applications.

One of the key features of the LTM8002HY is its robustness. It is designed to withstand harsh environments and is compliant with the AEC-Q100 standards for automotive applications. The device also includes internal over-temperature protection and a –40°C to +125°C operating junction temperature range, ensuring reliable performance under extreme conditions.

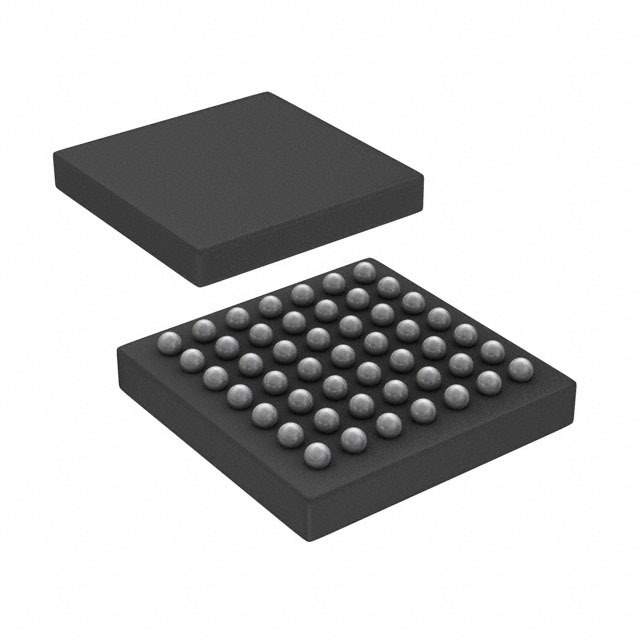

For ease of use, the LTM8002HY is available in a small, thermally enhanced 6.25mm × 6.25mm × 2.22mm BGA package. This, combined with its minimal need for external components, makes it an ideal choice for designers looking to minimize PCB real estate usage while maintaining high power efficiency and reliability.

Overall, the LTM8002HY from Analog Devices Inc. is a versatile, high-performance solution for those seeking a reliable and efficient power management component that can withstand the test of tough industrial and automotive environments.
