Introducing the LTM4601IY: A High-Performance µModule Regulator from Analog Devices Inc.

The LTM4601IY is a complete and compact power management solution from Analog Devices Inc., a leader in high-performance analog technology. This innovative µModule (micromodule) regulator integrates a high-efficiency switching regulator with all the necessary components into a single package, simplifying design and reducing time-to-market for a wide range of applications.

Key Features of the LTM4601IY

• Wide Input Voltage Range: The device operates efficiently with an input voltage range of 4.5V to 20V, making it versatile for various applications from automotive to industrial systems.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5V, catering to the needs of low-voltage power rails in modern electronic systems.
• High Output Current: With the capability to deliver up to 10A of continuous output current, the LTM4601IY is well-suited for high-power applications.
• High Efficiency: Its high-efficiency design ensures minimal heat generation, thereby reducing the need for extensive heat sinking or airflow.

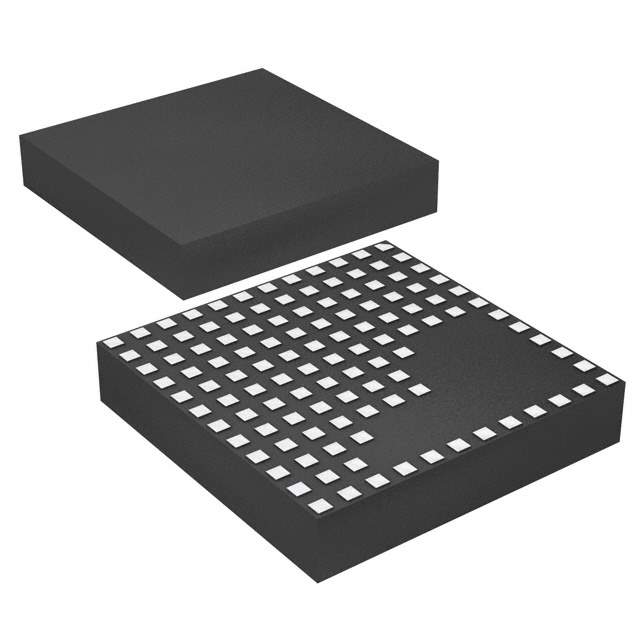

• Integrated Components: The micromodule includes the switching controller, power FETs, inductor, and all support components, all housed in a compact (15mm x 15mm x 2.8mm) LGA package.
• Thermal Management: The LTM4601IY is designed with exceptional thermal performance in mind, featuring over-temperature protection and a thermally enhanced package for reliable operation in challenging conditions.
• Advanced Features: It offers a range of features like tracking, soft-start, overvoltage protection, and power good indication, which contribute to the safe and predictable operation of the end application.

Applications

The flexibility and robustness of the LTM4601IY make it an excellent choice for a variety of applications, such as:

• Telecommunications Infrastructure
• Networking Equipment
• Servers and Storage Systems
• Industrial Equipment
• Medical Devices

With the LTM4601IY, engineers can achieve a high-performance power management system with a reduced footprint, simplified design process, and excellent reliability. Analog Devices Inc. continues to deliver solutions that push the boundaries of power efficiency and compactness, and the LTM4601IY is a testament to their commitment to innovation in the power management space.
