Analog Devices Inc. LTC5541IUH#TRPBF RF Mixer

The LTC5541IUH#TRPBF is a high-performance, passive double-balanced mixer from Analog Devices Inc., designed to meet the rigorous demands of RF and microwave applications. This versatile component is a critical piece in communication systems, signal processing, and electronic test and measurement equipment, offering exceptional performance in frequency conversion for both upconversion and downconversion processes.

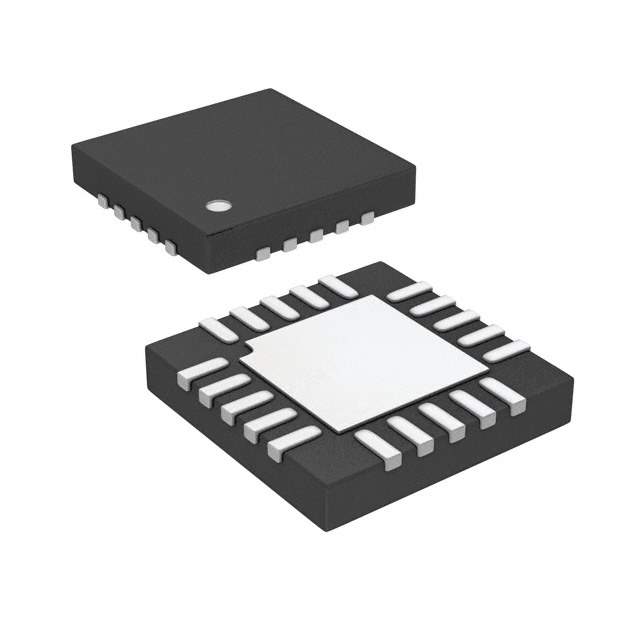

This RF mixer is part of the LTC5541 series and comes in a compact QFN package, with a 16-lead plastic unit that ensures a minimal footprint on the PCB. The mixer operates over a wide RF frequency range from 2GHz to 14GHz, making it an ideal choice for a variety of applications, including cellular base stations, point-to-point wireless communications, and radar systems.

The LTC5541IUH#TRPBF boasts an impressive conversion gain of typically 2.4dB, which can help reduce the need for additional amplification in the signal chain. Its integrated LO buffer simplifies the design by eliminating the need for an external local oscillator amplifier. Additionally, the device features a high input IP3 (third-order intercept point) of 24.4dBm at 9GHz, which translates to excellent linearity and allows it to handle high signal levels without significant distortion.

The mixer's IF frequency range spans from DC to 6GHz, providing designers with a broad spectrum to work with for their intermediate frequency (IF) design needs. Moreover, the LTC5541IUH#TRPBF is characterized by its low LO to RF leakage (typically -25dBm) and LO to IF leakage (typically -37dBm), which minimizes self-interference and contributes to a cleaner signal output.

For enhanced performance, the device also features integrated balun transformers, which provide balanced signals and improve overall signal integrity. The LTC5541IUH#TRPBF operates on a single 3.3V supply, with a supply current of 132mA, and includes an enable/disable function that allows for power savings when the mixer is not in use.

Overall, the LTC5541IUH#TRPBF from Analog Devices Inc. is a robust and reliable choice for designers looking to optimize their RF and microwave systems with a high-quality, efficient mixer solution.
