Analog Devices Inc. LTC2630AISC6-LM12 Digital-to-Analog Converter

The LTC2630AISC6-LM12 is a high-performance, 12-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed to deliver precision and ease of integration for a broad range of applications. This particular model is a standout in the LTC2630 family, offering a single DAC channel with a compact footprint, making it suitable for space-constrained designs.

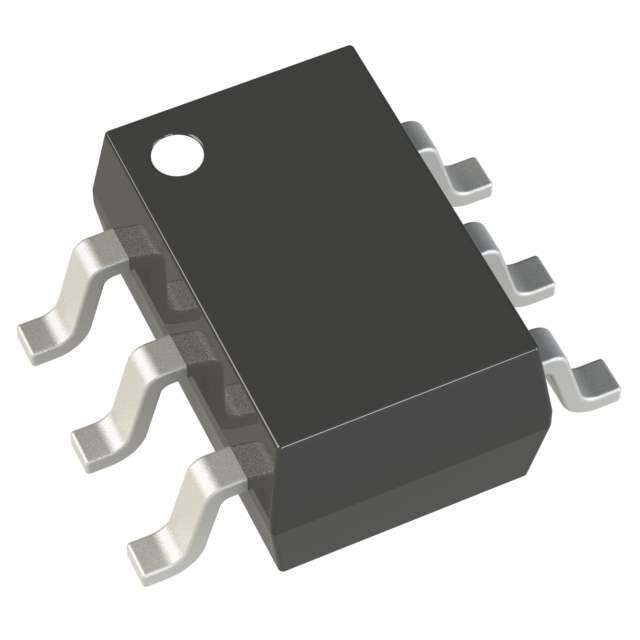

Encased in a small 6-lead SC70 package, the LTC2630AISC6-LM12 provides a full-scale output of 2.5V with an external reference, which ensures flexibility and precision in various operating conditions. The device operates from a 2.7V to 5.5V supply range, allowing it to be used in both 3.3V and 5V systems. This versatility makes it an ideal choice for portable battery-powered applications, as well as industrial, automotive, and communication systems.

One of the key features of the LTC2630AISC6-LM12 is its integrated precision reference, which remains stable over time and temperature variations. This internal reference greatly simplifies the design process by eliminating the need for external components, thus reducing overall system complexity and cost.

The DAC offers a simple SPI/Microwire-compatible three-wire serial interface, which supports high-speed data transfer and minimizes the number of I/O lines required from the controlling microprocessor or microcontroller. This ease of interfacing, combined with the device's low power consumption, makes the LTC2630AISC6-LM12 an excellent choice for digital control loops, calibration, and adjustable biasing applications.

For applications demanding high accuracy and stability, the LTC2630AISC6-LM12 provides excellent linearity with a maximum INL (Integral Nonlinearity) of ±1 LSB, ensuring reliable and consistent analog outputs. Additionally, the DAC features a power-on reset circuit that ensures the output powers up to zero-scale or mid-scale and remains there until a valid write takes place.

Overall, the LTC2630AISC6-LM12 from Analog Devices Inc. is a compact, highly integrated, and efficient solution for a diverse array of applications requiring precise digital-to-analog conversion. Its combination of features, including the internal reference, low power operation, and ease of use, make it a top choice for designers looking to enhance their systems with a reliable and high-quality DAC.
