ADGS1412BCPZ - High-Performance Analog Switch from Analog Devices Inc.

The ADGS1412BCPZ is a cutting-edge analog switch designed and manufactured by Analog Devices Inc., an industry leader in high-performance semiconductors. This device is part of the robust portfolio of switches that offer exceptional performance and reliability for a wide range of applications.

The ADGS1412BCPZ is a monolithic iCMOS® quad single-pole, single-throw (SPST) switch. It provides a low on-resistance of typically 1.5 Ω, ensuring minimal signal distortion and voltage drop across the switch. The device operates with a dual-supply voltage ranging from ±4.5 V to ±22 V or a single-supply voltage from 9 V to 44 V, providing designers with flexibility in various power environments.

This switch is designed for bidirectional data flow with minimal leakage current, making it an excellent choice for precision applications. It is also characterized by its fast switching times, with a typical turn-on time of 20 ns and turn-off time of 10 ns, which is crucial for high-speed signal routing.

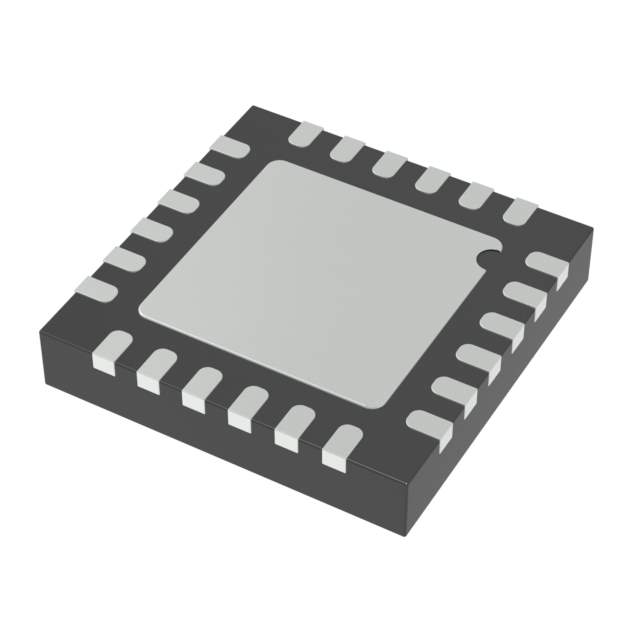

The ADGS1412BCPZ comes in a compact 20-lead LFCSP (Lead Frame Chip Scale Package) with a dimension of 4x4 mm, which is ideal for space-constrained applications. It is specified over the extended industrial temperature range of -40°C to +125°C, ensuring reliable operation under extreme conditions.

Key features of the ADGS1412BCPZ include:

• Low on-resistance: 1.5 Ω typical
• Dual-supply voltage: ±4.5 V to ±22 V
• Single-supply voltage: 9 V to 44 V
• Fast switching times: Ton = 20 ns, Toff = 10 ns
• Compact 20-lead LFCSP package
• Extended industrial temperature range: -40°C to +125°C

The ADGS1412BCPZ is well-suited for a variety of applications, including data acquisition systems, communication systems, relay replacement, and medical equipment. Its robust design and high-performance characteristics make it a reliable choice for engineers and designers looking for a high-quality analog switch solution.
