AD7173-8BCPZ-RL: High-Performance, 24-Bit Sigma-Delta ADC

The AD7173-8BCPZ-RL by Analog Devices Inc. is a state-of-the-art, 24-bit analog-to-digital converter (ADC) that offers remarkable precision and flexibility, making it an ideal choice for demanding applications requiring high-resolution signal processing. This component is tailored to meet the needs of industries ranging from industrial process control to medical instrumentation, where accuracy and reliability are paramount.

Utilizing sigma-delta modulation, the AD7173-8BCPZ-RL provides a low-noise, high-throughput solution. With its exceptional performance, including a maximum channel scan rate of 50 kSPS (kilo-samples per second) for fully settled data, this ADC ensures rapid and accurate data conversion for real-time applications. The device features multiple filter options, including enhanced 50 Hz and 60 Hz rejection, which significantly improves the quality of measurements in environments with electrical noise.

The ADC supports up to 8 single-ended or 4 differential inputs, giving designers the flexibility to connect multiple sensors to a single device. This multiplexing capability simplifies system design and reduces the overall component count, leading to cost savings and a more compact system footprint.

For ease of integration, the AD7173-8BCPZ-RL offers a variety of interface options, including SPI and I2C, allowing it to easily communicate with microcontrollers and digital systems. It also features an internal clock, eliminating the need for external timing components. Furthermore, its on-chip calibration ensures long-term stability and minimizes the need for frequent system recalibration.

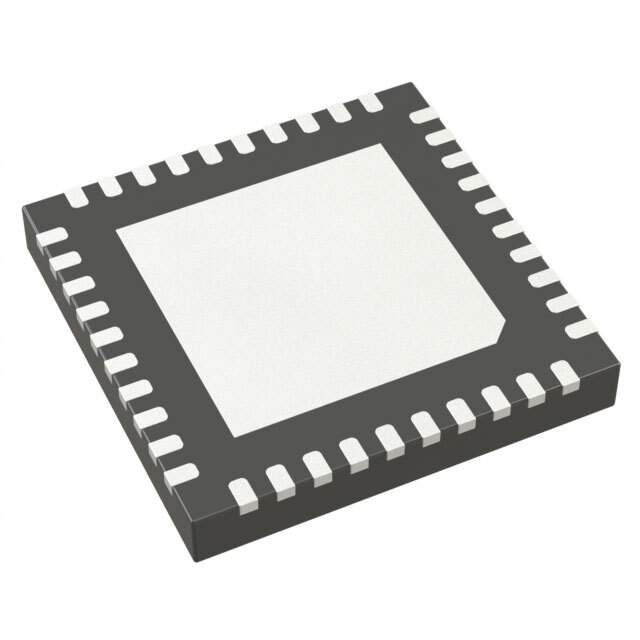

Encased in a compact LFCSP (Lead Frame Chip Scale Package), the AD7173-8BCPZ-RL is designed for space-constrained applications. The robust packaging, coupled with an extended temperature range of -40°C to +105°C, ensures reliable operation even in harsh environments.

In summary, the AD7173-8BCPZ-RL represents Analog Devices Inc.'s commitment to delivering high-performance data conversion solutions that address the critical needs of precision measurement systems. With its advanced features and robust design, this ADC stands out as a top choice for engineers seeking to enhance the accuracy and efficiency of their electronic designs.
