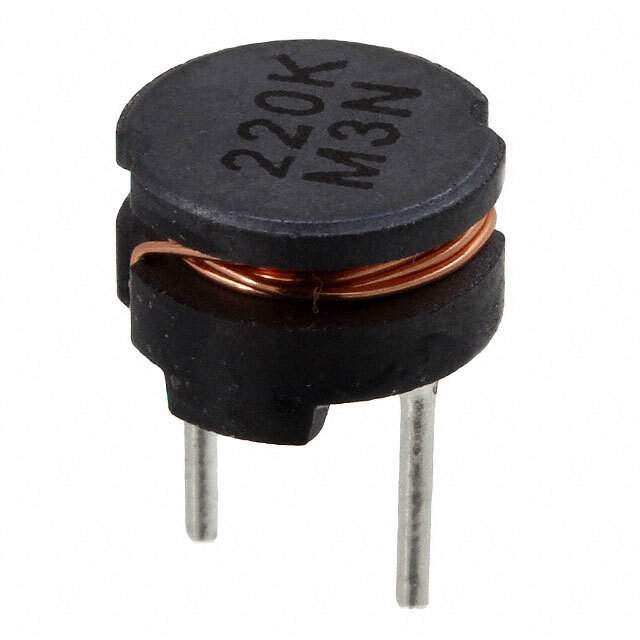

RCH855NP-220K Real Image
Same model may have multiple batches, images only for reference.

RCH855NP-220K

Part No RCH855NP-220K
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 770MA 120 MOHM TH / 22 µH Unshielded Drum Core, Wirewound Inductor 770 mA 120mOhm Max Radial, Vertical Cylinder (Open)
Datasheet
RCH855NP-220K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 770 mA
Current - Saturation (Isat) 1.7A
Shielding Unshielded
DC Resistance (DCR) 120mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 2.52 MHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder (Open)
Size / Dimension 0.307" Dia (7.80mm)
Height - Seated (Max) 0.217" (5.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-2096
Standard Package 100
Win Source Part Number 1330626-RCH855NP-220K
Ultra Librarian 3D Model Ultra Librarian RCH855NP-220K CAD Model

Description

The Sumida America Components Inc. RCH855NP-220K is a drum core, wirewound fixed inductor that has an inductance of 22μH.

  • Inductance: 22μH
  • Shielding: Unshielded
  • Case/Package: Radial, Vertical Cylinder (Open)
  • DC Resistance (DCR): 120mOhm max
  • Current Rating: 770mA
  • Temperature Range: -40°C to 100°C
