Product Overview: ADV7844KBCZ-5

The ADV7844KBCZ-5 is a high-performance, versatile video decoder chip produced by Analog Devices Inc., a leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits. This integrated circuit (IC) is designed to cater to a wide array of video applications that require high-quality video capture, processing, and display.

Key Features

• Multi-format Support: The ADV7844KBCZ-5 is capable of decoding a diverse range of video formats including PAL, NTSC, SECAM, and a variety of high-definition formats, making it an ideal solution for global video applications.
• High-Definition Interface: It includes an HDMI receiver that supports all mandatory 3D TV formats, as well as x.v.Color, deep color, and high-definition audio formats.
• Advanced Digital Processing: This IC features a 12-bit internal processing path that ensures high-quality video output with minimal signal degradation.
• Integrated Audio Codec: The ADV7844KBCZ-5 comes with an integrated audio codec that supports multiple audio formats, providing a complete audio and video processing solution.
• Low Power Consumption: Designed with power efficiency in mind, this IC consumes minimal power, making it suitable for energy-sensitive applications.

Applications

The ADV7844KBCZ-5 is ideal for a variety of applications that require reliable and high-quality video decoding capabilities. These applications include:

• Professional video editing and broadcasting equipment
• High-definition video conferencing systems
• Home theater systems and AV receivers
• Digital signage and video wall controllers
• Security and surveillance systems

Technical Specifications

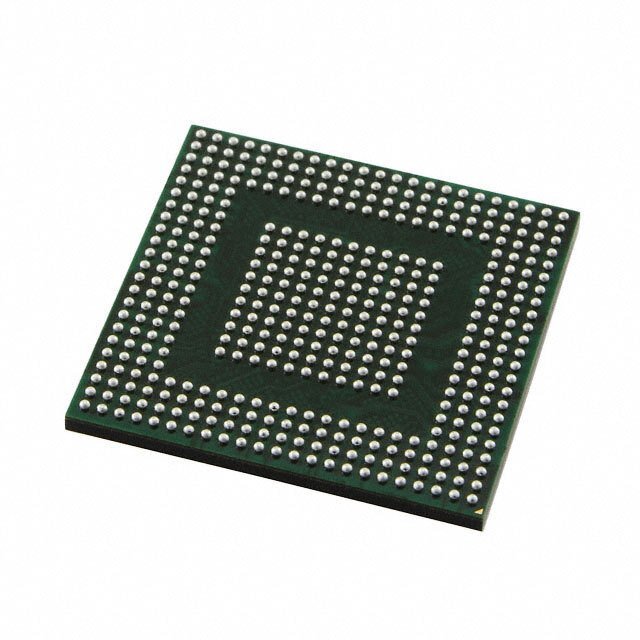

The ADV7844KBCZ-5 operates over a temperature range of -40°C to +85°C and comes in a 256-ball CSP_BGA package. It requires a single 1.8V power supply for the core and offers flexible power-down modes for increased power savings.

Conclusion

The ADV7844KBCZ-5 from Analog Devices Inc. is a comprehensive solution for advanced video processing needs. With its multi-format support, high-definition capabilities, and integrated audio processing, it stands out as a robust component for video-centric applications across various industries.
