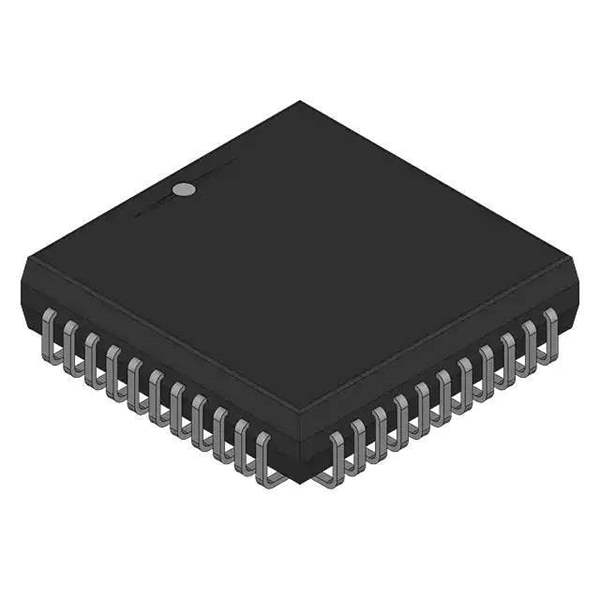

Product Overview: ADV476KP66E

The ADV476KP66E is a high-performance, CMOS digital-to-analog converter (DAC) designed and manufactured by Analog Devices Inc. This product is specifically engineered to meet the demanding needs of color graphics and video display systems. Its robust architecture and advanced features make it an ideal choice for applications requiring accurate color reproduction and smooth gradients.

Key Features

• Resolution: The ADV476KP66E boasts a 6-bit triple DAC, which means it has three separate 6-bit channels for red, green, and blue (RGB) outputs, facilitating precise color control for high-quality imaging.
• Speed: With a high update rate, this DAC is capable of handling the rapid refresh rates required for smooth video playback and dynamic graphical presentations.
• Compatibility: It supports a wide range of graphics display standards and is easily interfaced with most graphic controller ICs, making it a versatile solution for numerous display systems.
• Low Power Consumption: Designed with power efficiency in mind, the ADV476KP66E minimizes power consumption, which is crucial for portable and energy-sensitive applications.
• Package: This product is available in a 28-pin PLCC (Plastic Leaded Chip Carrier) package, providing a compact footprint and ease of integration into system designs.

Applications

The ADV476KP66E is suited for a variety of applications that require high-quality color rendering and fast digital-to-analog conversion, including:

• High-resolution color graphics displays
• Video display terminals
• Professional video editing and broadcasting equipment
• Medical imaging systems
• Virtual reality and simulation systems

Technical Specifications

Some of the technical specifications of the ADV476KP66E include:

• Supply Voltage: 5 V ± 10%
• Power Dissipation: Typically 175 mW
• Digital Input Levels: TTL/CMOS compatible
• Operating Temperature Range: 0°C to +70°C
• Storage Temperature Range: -65°C to +150°C

With its combination of speed, precision, and power efficiency, the ADV476KP66E from Analog Devices Inc. represents a reliable and high-quality solution for advanced color display systems.
