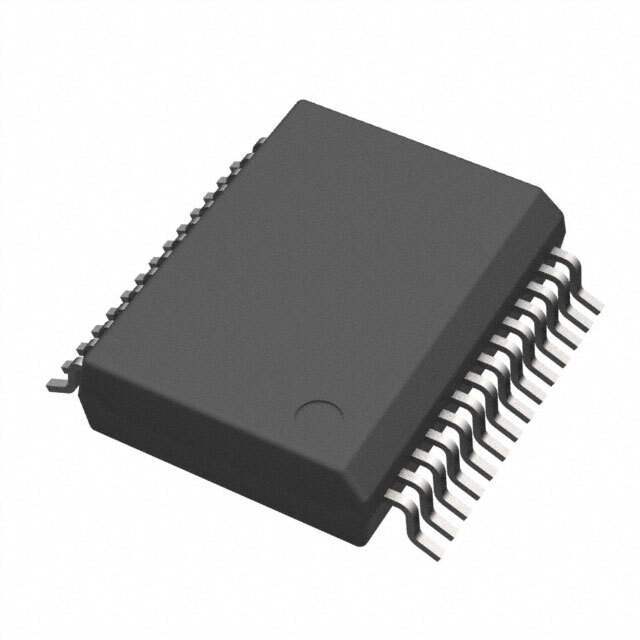

Product Overview: ADUM6422ABRNZ5-RL by Analog Devices Inc.

The ADUM6422ABRNZ5-RL is a high-performance, quad-channel digital isolator from Analog Devices Inc., designed to provide robust signal isolation for a variety of applications. This device incorporates Analog Devices' proprietary iCoupler® technology, which enables it to offer superior performance and reliability compared to traditional optocoupler-based solutions. The ADUM6422ABRNZ5-RL is ideal for use in industrial, medical, and automotive environments where electrical noise and isolation are critical concerns.

Key Features

• Quad-Channel Isolation: This device features four independent isolation channels, which are capable of isolating digital signals between two domains effectively.
• High Data Rates: With support for data rates up to 25 Mbps, the ADUM6422ABRNZ5-RL can handle high-speed digital signals without compromising signal integrity.
• Robust Isolation: The device provides up to 5 kV RMS of isolation for 1 minute, ensuring protection against high voltage transients and enhancing system safety.
• Low Power Consumption: It is designed for energy efficiency, with low power operation that helps reduce overall power consumption in end applications.
• Wide Temperature Range: The ADUM6422ABRNZ5-RL operates over a wide temperature range from -40°C to +125°C, making it suitable for harsh environment applications.

Applications

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Automotive systems requiring reliable signal isolation
• Data communication systems
• Solar inverters and renewable energy equipment

The ADUM6422ABRNZ5-RL is available in a compact, surface-mount LFCSP package that is RoHS compliant and suitable for automated assembly processes. Its high level of integration and small footprint make it an excellent choice for space-constrained applications. Analog Devices Inc. is known for its commitment to quality and reliability, and the ADUM6422ABRNZ5-RL is no exception, offering dependable performance for critical isolation applications.

With its combination of high-speed data transfer, robust electrical isolation, and low power consumption, the ADUM6422ABRNZ5-RL by Analog Devices Inc. is a versatile solution that meets the stringent requirements of a wide range of isolated communication designs.
