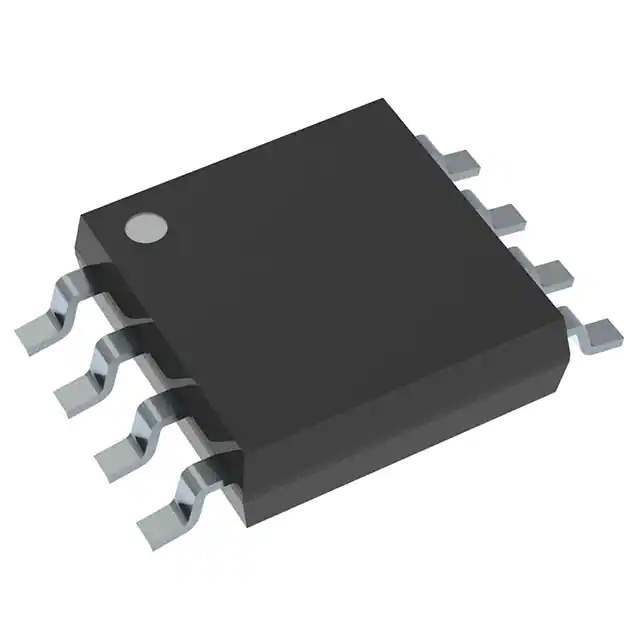

NJM2520M-TE1 Real Image
Same model may have multiple batches, images only for reference.

NJM2520M-TE1

Part No NJM2520M-TE1
Manufacturer Nisshinbo Micro Devices Inc.
Catalog Audio Special Purpose
Description IC AUDIO SWITCH 2-IN/1-OUT 8DMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Audio Special Purpose
Mfr Nisshinbo Micro Devices Inc.
Package Tape & Reel
Product Status Obsolete
Function Audio Switch
Applications Audio Systems
Number of Channels 1
Interface Analog
Voltage - Supply 4.75V ~ 13V
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.197", 5.00mm Width)
Supplier Device Package 8-DMP
Standard Package 2,000 pcs
ECCN OBSOLETE
Win Source Part Number 254452-NJM2520M-TE1
Ultra Librarian 3D Model Ultra Librarian NJM2520M-TE1 CAD Model

Description

The NJM2520M-TE1 is an analog audio switch IC designed for audio systems. It is commonly used in applications where analog audio signals need to be switched.

  • Channel: single channel
  • Supply Voltage Range: 4.75V to 13V
  • Package: 8-SOIC
  • Application: surface mount applications
  • Operating Temperature Range: -20°C to 75°C
  • Status: currently obsolete
  • Manufacturer: Nisshinbo Micro Devices Inc.
