ADUM1250ARZ: Hot Swappable, Dual I²C Isolators from Analog Devices Inc.

The ADUM1250ARZ is a robust, high-performance I²C-compatible digital isolator designed and manufactured by Analog Devices Inc. This component is a part of the ADuM1250 series, which are known for their ability to enable I²C communication in environments where electrical isolation is necessary due to noise concerns or potential ground differences. The ADUM1250ARZ is particularly well-suited for applications requiring isolation in industrial, automotive, and medical systems.

Key Features

• Hot Swappable: The ADUM1250ARZ supports hot swapping, making it possible to insert or remove the device without needing to power down the system. This feature is essential for systems that require maintenance or upgrades without interrupting operations.
• Dual Bidirectional Channels: It has two bidirectional channels that support a complete isolated I²C interface. This ensures seamless communication between devices on either side of the isolator.
• High-Speed Operation: The device can operate at high speeds, making it suitable for fast I²C applications, and is capable of supporting Standard-mode, Fast-mode, and Fast-mode Plus I²C protocols.
• Low Power Consumption: Designed with power efficiency in mind, the ADUM1250ARZ consumes low power, which is critical for energy-sensitive applications.
• High Isolation Voltage: It offers an isolation voltage of 2500 Vrms for 1 minute, providing reliable protection against high voltage transients and enhancing system safety.

Applications

The ADUM1250ARZ is versatile and can be used in a wide range of applications, including:

• Industrial Control Systems
• Automotive Networks
• Medical Equipment
• Power Supplies
• Isolated Sensor Interfaces

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the ADUM1250ARZ is no exception. It is built to meet stringent industry standards, ensuring reliability and performance in even the most demanding conditions. With its robust design and advanced features, the ADUM1250ARZ is an excellent choice for designers looking to incorporate I²C isolation in their systems.

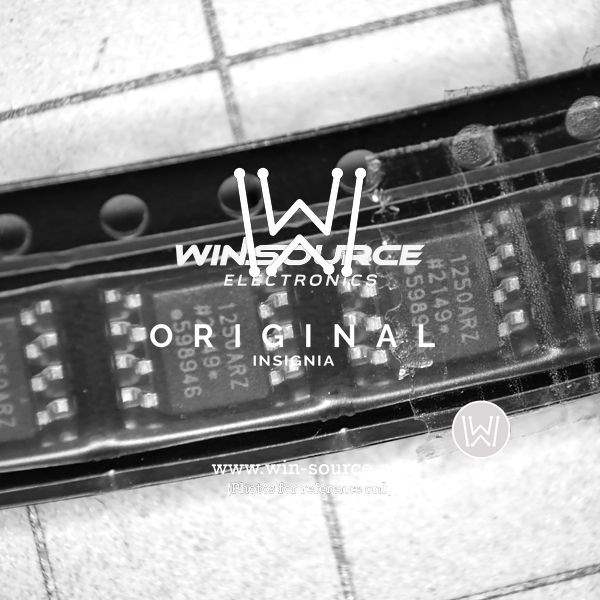

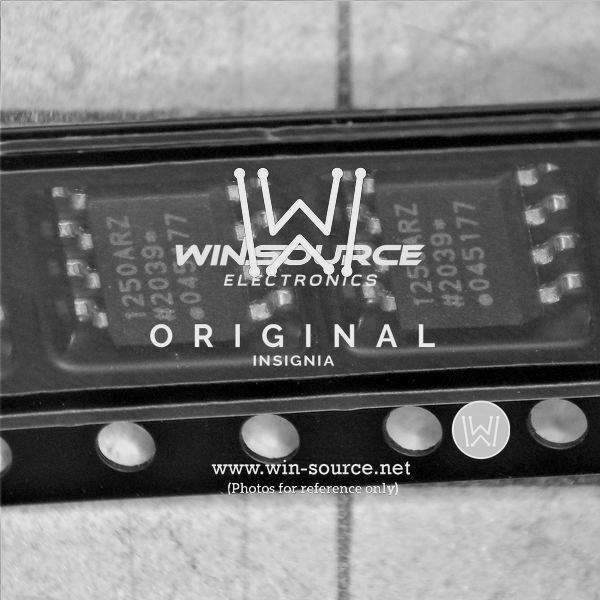

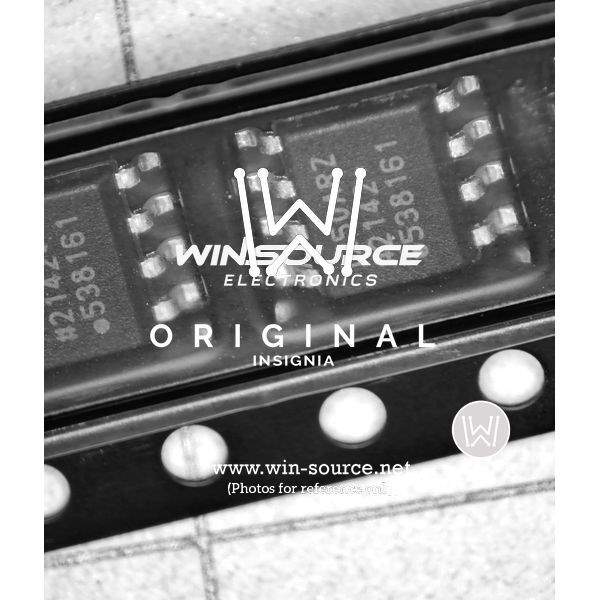

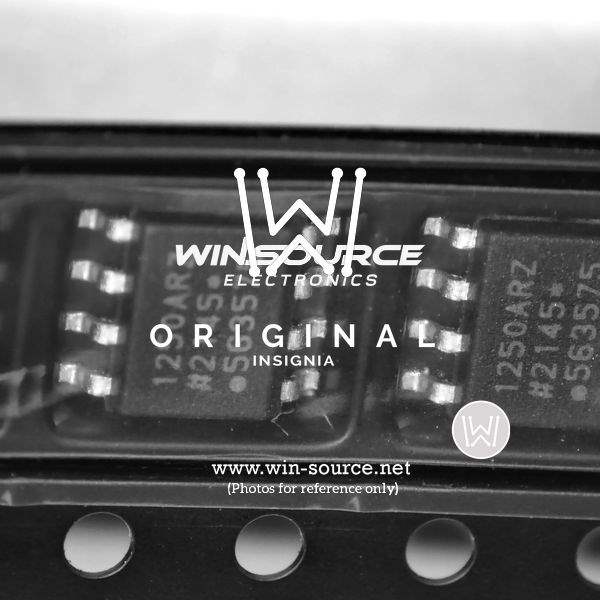

The ADUM1250ARZ comes in a compact, surface-mountable SOIC package, making it easy to integrate into a variety of circuit board layouts. Whether you're working on a new design or updating an existing system, the ADUM1250ARZ offers a reliable and efficient solution for your I²C isolation needs.
