Analog Devices Inc. ADUC7023BCPZ62I Microcontroller

The ADUC7023BCPZ62I is a highly integrated microcontroller from Analog Devices Inc., tailored for precision analog control applications. It is part of the ADuC7xxx series, which is renowned for its robust and high-performance mixed-signal microcontroller units (MCUs). This particular MCU is designed to offer a seamless integration of analog peripherals with a powerful ARM7TDMI core, making it an ideal choice for industrial, automotive, and instrumentation applications.

Key Features and Benefits

• Core: At the heart of the ADUC7023BCPZ62I is an ARM7TDMI core, which operates at a frequency of up to 41.78 MHz, providing a balance between power consumption and processing capability.
• Memory: The device includes 62KB of on-chip flash memory and 8KB of SRAM, offering ample storage for firmware and data.
• Analog Peripherals: It boasts a set of precision analog peripherals, including a 12-bit ADC with up to 1 MSPS, DACs, and a temperature sensor, which enable accurate measurement and control functions.
• Temperature Range: The ADUC7023BCPZ62I is designed to operate over an industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments.
• Power Management: The MCU features a range of power-saving modes, including a power-down mode with a typical current consumption of just 1.6 μA, making it suitable for battery-powered applications.

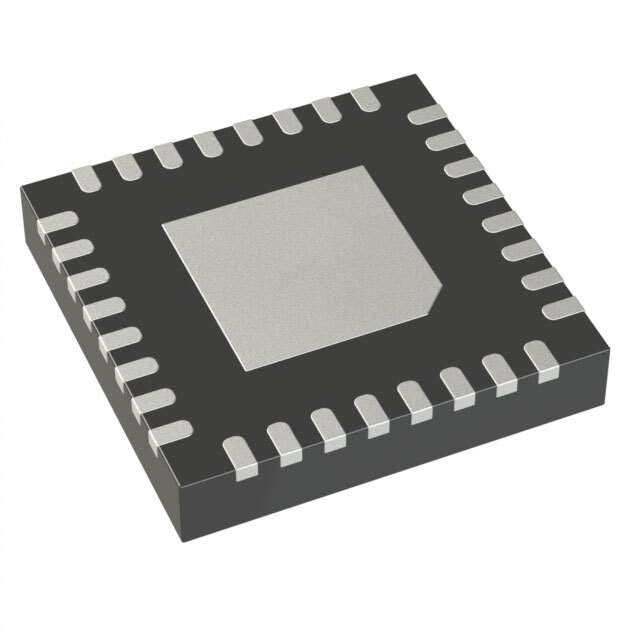

• Packaging: It comes in a compact 48-lead LFCSP (Lead Frame Chip Scale Package), which is beneficial for space-constrained applications.
• Communication Interfaces: The device provides multiple communication interfaces such as I²C, SPI, UART, and USB, allowing for versatile connectivity options.

Applications

The ADUC7023BCPZ62I is versatile enough to be used in a wide range of applications where precision and performance are critical. It is particularly well-suited for:

• Process control and automation
• Portable instrumentation
• Automotive sensors and diagnostics
• Smart battery management
• Medical monitoring devices

With its robust feature set and high level of integration, the ADUC7023BCPZ62I from Analog Devices Inc. stands out as a microcontroller that can streamline product design and enhance system performance in demanding applications.
