ADSP-BF561SBB500 - High-Performance Dual-Core Blackfin Processor

The ADSP-BF561SBB500 is a sophisticated dual-core processor that is part of the Blackfin family of products from Analog Devices Inc. This processor is designed to deliver high computational performance and power efficiency, making it an ideal choice for embedded applications that require signal processing capabilities along with control processing.

At the heart of the ADSP-BF561SBB500 are two symmetric multiprocessing cores, which can run at a clock speed of up to 500 MHz. These cores are based on the Blackfin processor architecture, which is known for its microcontroller-like programmability and ease of use, along with the signal processing power of a DSP. This unique combination allows for efficient processing of both control-based tasks and complex signal processing algorithms in a single chip, simplifying design and reducing system costs.

Key Features:

• Dual-Core Processor: Two 32-bit Blackfin processor cores for parallel processing.
• High Performance: Up to 1000 MMACS (Million Multiply-Accumulate Operations per Second) of combined performance.
• Integrated Memory: Large on-chip memory, including L1 and L2 SRAM, which is essential for real-time signal processing.
• Peripheral Set: A rich set of peripherals including DMA controllers, parallel peripheral interface, UART, SPI, timers, and more to support a wide range of interfaces.
• Power Management: Dynamic power management options for optimizing power consumption based on performance requirements.

The ADSP-BF561SBB500 is well-suited for multitasking applications, as it can efficiently handle multiple, concurrent processes without sacrificing performance. This makes it an excellent choice for applications in automotive, industrial control, medical imaging, multimedia, and communications that demand robust, high-speed data processing and real-time responsiveness.

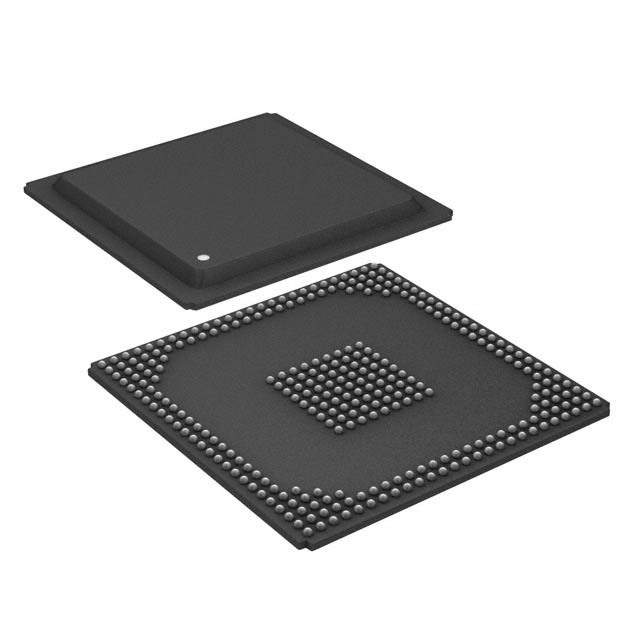

Additionally, the processor is supported by Analog Devices' CrossCore® Embedded Studio (CCES) software development tools, which provide developers with a comprehensive suite of development and debugging tools to accelerate product time-to-market. The ADSP-BF561SBB500 is available in a 400-ball CSPBGA package and is specified over an extended industrial temperature range, making it a reliable choice for demanding environments.

Overall, the ADSP-BF561SBB500 from Analog Devices Inc. represents a powerful, flexible solution for designers who require a high-performance, dual-core processor capable of executing complex algorithms and managing multiple tasks in real-time.
