ADSP-BF533SBBCZ500

Part No ADSP-BF533SBBCZ500
Manufacturer Analog Devices Inc.
Catalog Embedded - DSP (Digital Signal Processors)
Description IC DSP CTLR 16B 500MHZ 160CSBGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Tray
Status Active
Type Fixed Point
Clock Rate 500MHz
Non-Volatile Memory ROM (1 kB)
On-Chip RAM 148kB
Voltage - I/O 3.30V
Voltage - Core 1.20V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

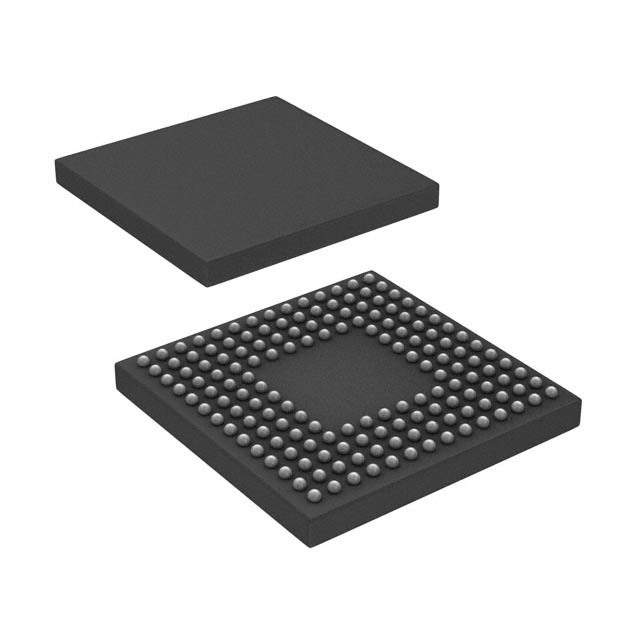

Case / Package 160-CSPBGA (12x12)
Win Source Part Number 198849-ADSP-BF533SBBCZ500
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADSP-BF533SBBCZ500 CAD Model

Description

The ADSP-BF533SBBCZ500 is a high-performance digital signal processor (DSP) from Analog Devices Inc., designed to cater to a wide range of applications requiring efficient signal processing capabilities. This product is part of the Blackfin family of processors, which are known for their exceptional performance in both signal processing and control tasks, making them ideal for multimedia, audio, video, voice and data communication systems.

Key Features:

  • Core Performance: The ADSP-BF533SBBCZ500 features a 500 MHz core clock speed, which allows for high-speed computation and real-time processing capabilities. This makes it suitable for demanding applications that require quick data processing and throughput.
  • Memory: It comes with a large on-chip memory, including 148KB of RAM, which is essential for buffering data and supporting complex algorithms without the need for external memory components.
  • Peripheral Set: This DSP is equipped with a rich set of peripherals, including UART, SPI, SPORT, and CAN interfaces, providing versatile options for interfacing with other devices and systems.
  • Power Efficiency: Designed with power efficiency in mind, the ADSP-BF533SBBCZ500 offers low power consumption modes, making it suitable for portable and battery-operated devices.
  • Integration: The high level of integration in this DSP reduces the need for additional external components, simplifying design and reducing overall system cost and complexity.

Applications:

  • Industrial Control Systems
  • Automotive Audio and Telematics
  • Home Theater Systems
  • Networked Audio and Video Players
  • Medical Imaging Devices

The ADSP-BF533SBBCZ500 offers a combination of processing power, integrated peripherals, and power efficiency, making it a versatile choice for designers looking to implement advanced signal processing functionality in their products. Its robust architecture and comprehensive feature set ensure that it can meet the requirements of a broad spectrum of signal processing applications.
