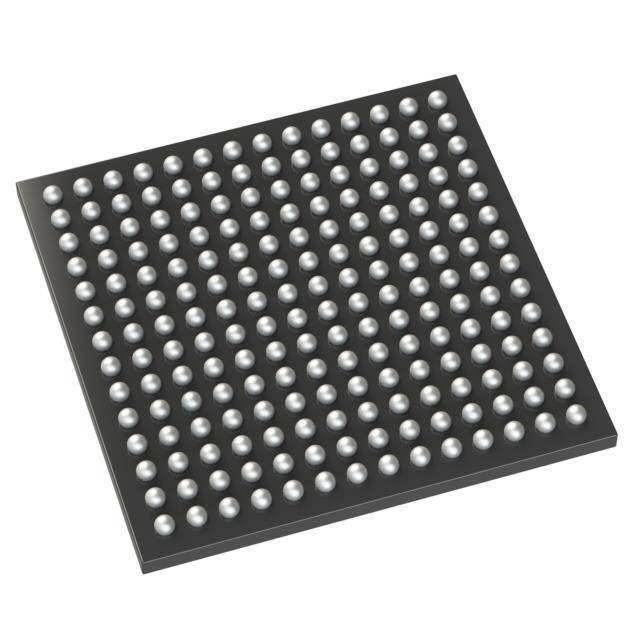

Same model may have multiple batches, images only for reference.

ADRV9003BBCZ

Name: ADRV9003BBCZ
Brand: Analog Devices Inc.
SKU: WS1307862
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ADRV9003BBCZ
Manufacturer	Analog Devices Inc.
Catalog	RF Transceiver Modules
Description	RF TXRX MOD ISM>1GHZSMD
Datasheet	ADRV9003BBCZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307862-ADRV9003BBCZ
Category	RF and Wireless >RF Transceiver Modules and Modems
Mfr	Analog Devices Inc.
Packaging	Tray
Part Status	Active
RF Family/Standard	General ISM > 1GHz
Frequency	30MHz ~ 6GHz
Power - Output	7.8dBm
Serial Interfaces	GPIO, SPI
Antenna Type	Antenna Not Included
Utilized IC / Part	ADRV9003
Ultra Librarian 3D Model	Ultra Librarian ADRV9003BBCZ CAD Model

Description

Highly integrated transceiver with single-channel transmitter and dual-channel receivers
Frequency range of 30 MHz to 6000 MHz
Transmitter and receiver bandwidth from 12 kHz to 40 MHz
Two fully integrated, fractional-N, RF synthesizers
LVDS and CMOS synchronous serial data interface options
Low power monitor and sleep modes
Multichip synchronization capabilities
Fast frequency hopping
Dynamic profile switching for dynamic data rates and sample rates
Fully programmable via a 4-wire SPI
12 mm × 12 mm, 196-ball CSP_BGA
