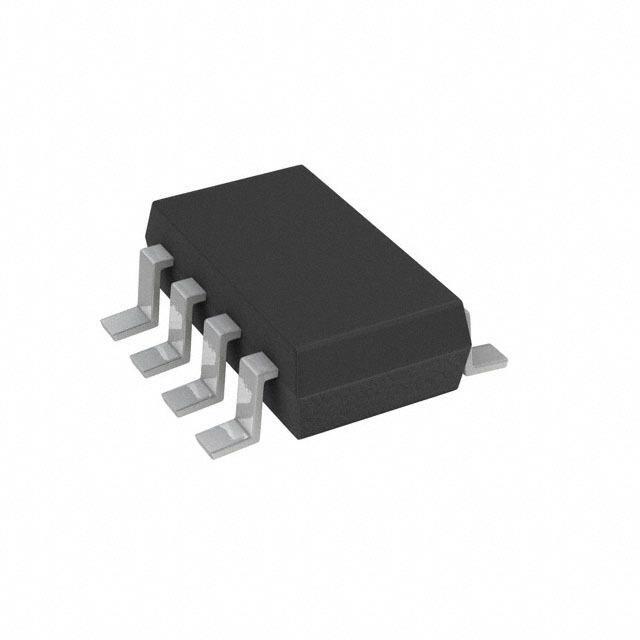

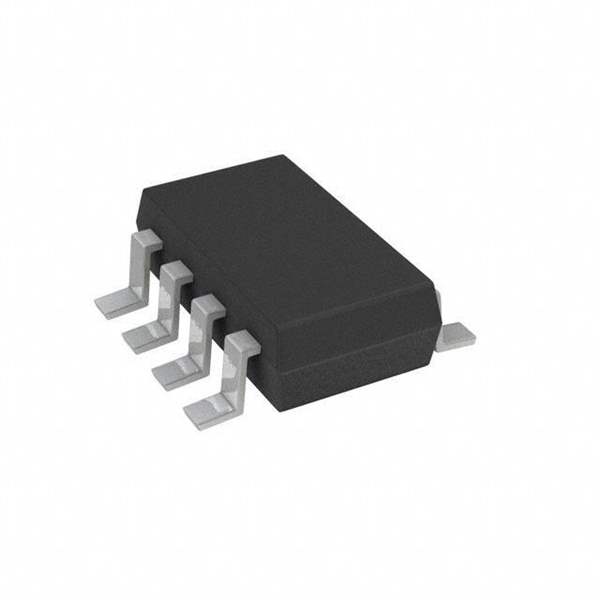

The ADM1172-1AUJZ-RL7 from Analog Devices Inc. is a sophisticated hot swap controller and digital power monitor integrated into a single package. This device is designed to help protect sensitive electronic components in a system by controlling the inrush current during system power-up and insertion. It is particularly useful in situations where circuit boards are hot-swapped, preventing damage to both the board being inserted and the host system.

Key Features

• Current Limiting: The ADM1172-1AUJZ-RL7 provides an adjustable current limit threshold, ensuring that the inrush current is kept under control to prevent damage to the electronic components.
• Voltage Monitoring: It offers precise voltage monitoring capabilities, safeguarding the system against overvoltage and undervoltage conditions.
• Digital Power Monitoring: This device includes a 12-bit analog-to-digital converter (ADC) for monitoring the voltage and current, which can be communicated to a microcontroller via an I2C interface.
• Programmable Power-Up Timing: Users can program the power-up rate of the ADM1172-1AUJZ-RL7, allowing for a customized inrush current profile that suits the specific needs of the application.
• Compact Package: Available in a compact 8-lead MSOP (Mini Small Outline Package), which is ideal for space-constrained applications.
• High Accuracy: The integrated ADC offers high accuracy measurements, which is critical for reliable system operation and power management.

Applications

The ADM1172-1AUJZ-RL7 is versatile and can be used in a variety of applications, including:

• Server and Telecom Power Distribution Systems
• Network Routers and Switches
• Industrial/PLC Systems
• Redundant Power Supplies
• Blade Servers

With its robust feature set and protection mechanisms, the ADM1172-1AUJZ-RL7 from Analog Devices Inc. is an essential component for systems requiring reliable power management and monitoring. It is a testament to Analog Devices' commitment to providing high-quality, innovative solutions for complex power management challenges.
