ADL5504ACBZ-P7

Part No ADL5504ACBZ-P7
Manufacturer Analog Devices Inc.
Catalog RF Detectors
Description 450 MHz to 6000 MHz TruPwr Detector | IC RF DETECT 450MHZ-6GHZ 6WLCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Analog Devices Inc.
Packaging Reel
Frequency 450MHz ~ 6GHz
RF Type CDMA, QPSK, W-CDMA
Input Range -25dB ~ 15dB
Accuracy ±0.25dB
Supply Voltage (V) 2.5V ~ 3.3V
Supply Current 1.8mA

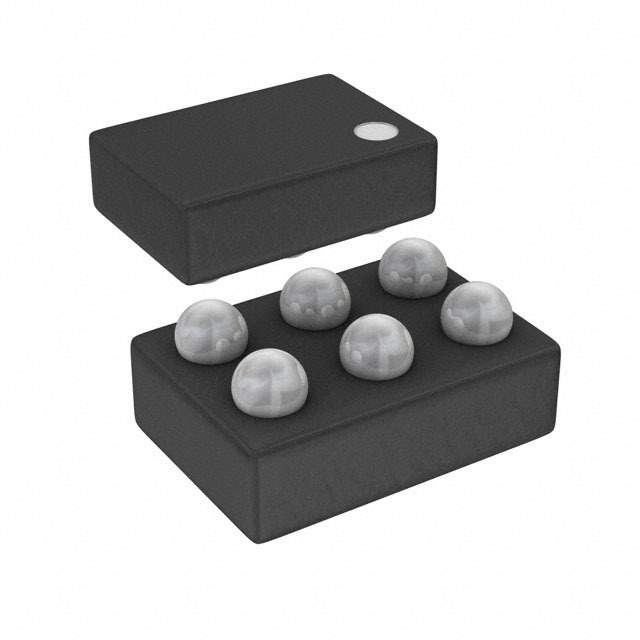

Manufacturer Package 6-WFBGA, WLCSP
Supplier Device Package 6-WLCSP (1.19x0.79)
Family Part Number ADL5504
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1140539-ADL5504ACBZ-P7
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADL5504ACBZ-P7 CAD Model

Description

Introducing the ADL5504ACBZ-P7 from Analog Devices Inc.

The ADL5504ACBZ-P7 is a state-of-the-art RF detector from the renowned manufacturer, Analog Devices Inc. Designed to provide precise and reliable measurement of RF signals, this product stands out in the market for its versatility and high performance.

The ADL5504ACBZ-P7 operates over a frequency range of 450 MHz to 6 GHz, making it an excellent choice for a wide variety of applications, including wireless infrastructure, RF test equipment, and power measurement for communication systems. The device is capable of detecting both small and large signal strengths, from -35 dBm to +5 dBm, ensuring accurate readings across a broad dynamic range.

This RF detector features a temperature-stable logarithmic response, which means that it maintains consistent performance over varying environmental conditions. Its logarithmic output is directly proportional to the input signal's power level in dB, facilitating an easy and straightforward interface with other signal processing components.

Key Features of the ADL5504ACBZ-P7:

  • Frequency Range: 450 MHz to 6 GHz
  • Dynamic Range: -35 dBm to +5 dBm
  • Logarithmic Slope: 25 mV/dB (typical)
  • Supply Voltage: 4.5 V to 5.5 V
  • Temperature Range: -40°C to +85°C
  • Package: Compact 8-lead LFCSP (3 mm × 3 mm)

The ADL5504ACBZ-P7 comes in a compact 8-lead LFCSP package that measures just 3 mm by 3 mm, allowing it to be easily incorporated into space-constrained designs without compromising on performance. The device requires a single supply voltage ranging from 4.5 V to 5.5 V, simplifying the power supply design and integration into existing systems.

Analog Devices Inc. is known for its commitment to quality and reliability, and the ADL5504ACBZ-P7 is no exception. It is designed to meet the rigorous demands of industrial and commercial applications, ensuring long-term stability and performance. With its robust design and advanced features, the ADL5504ACBZ-P7 is a top choice for professionals seeking an accurate and dependable RF signal detection solution.
