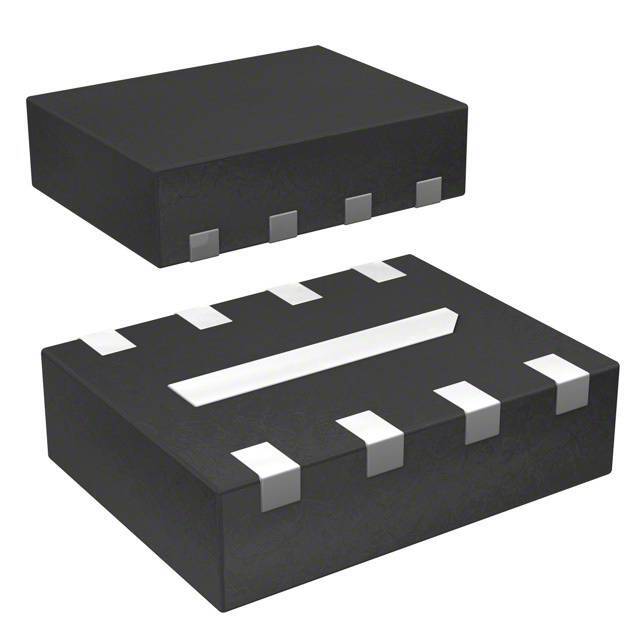

ADL5350ACPZ-R7

Part No ADL5350ACPZ-R7
Manufacturer Analog Devices Inc.
Catalog RF Mixers
Description IC MIXER 750MHZ-4GHZ 8LFCSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Active
RF Type Cellular, CDMA, GSM
Frequency 750MHz to 4GHz
Number of Mixers 1
Noise Figure 6.5dB
Operating Supply Current 16.5mA
Supply Voltage - Operating 2.7 V to 3.5 V
Case / Package 8-LFCSP-VD (3x2)
Win Source Part Number 008914-ADL5350ACPZ-R7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADL5350ACPZ-R7 CAD Model

Description

Product Overview: ADL5350ACPZ-R7 from Analog Devices Inc.

The ADL5350ACPZ-R7 is a high-performance mixer component manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This mixer is specifically designed for frequency conversion in RF and IF applications across a broad range of industries, including telecommunications, aerospace, and defense systems.

The ADL5350ACPZ-R7 is part of the ADL5350 series, which is known for its exceptional linearity and low noise performance. It operates over a wide frequency range, making it extremely versatile for different applications. The mixer can be used in both upconversion and downconversion processes, with an RF/LO frequency range from 2300 MHz to 4000 MHz and an IF frequency range from 30 MHz to 450 MHz.

Key Features:

  • High Linearity: The ADL5350ACPZ-R7 boasts excellent linearity, which minimizes distortion and improves signal quality in complex RF systems.
  • Wide Frequency Range: With an RF/LO frequency from 2300 MHz to 4000 MHz and an IF frequency from 30 MHz to 450 MHz, this mixer accommodates a variety of frequency plans.
  • Single-Ended RF/IF Ports: The device simplifies the design process by providing single-ended RF and IF ports, which reduces the need for external components such as baluns.
  • Low Noise Figure: The ADL5350ACPZ-R7 offers a low noise figure, ensuring a clean signal conversion process with minimal added noise.
  • Compact Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), it is suitable for space-constrained applications without sacrificing performance.

Applications:

The ADL5350ACPZ-R7 is ideal for a range of applications, including:

  • Wireless infrastructure (GSM, WCDMA, LTE)
  • Point-to-point and point-to-multipoint radios
  • IF sampling receivers
  • Broadband wireless access systems
  • Test equipment and sensors

With its robust performance and flexible operation, the ADL5350ACPZ-R7 from Analog Devices Inc. is a crucial component for engineers looking to develop or enhance RF and IF systems that require high-quality signal processing and frequency conversion capabilities.
