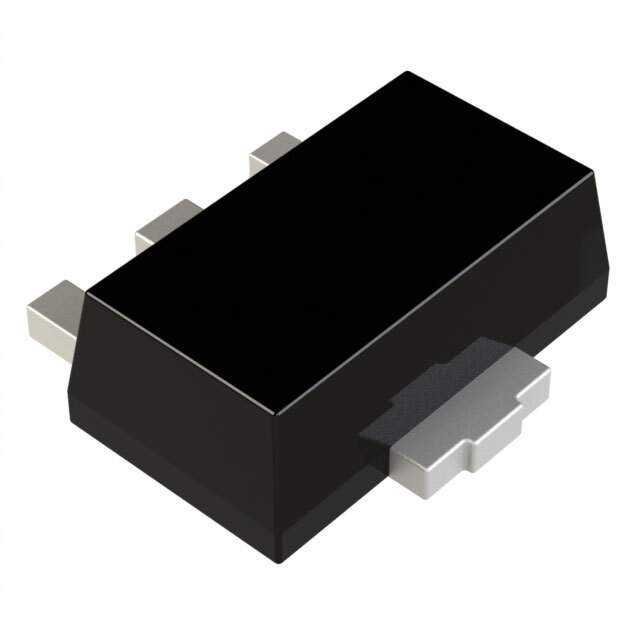

Analog Devices Inc. ADL5320ARKZ Product Overview

The ADL5320ARKZ is a high-performance RF/IF gain block amplifier designed by Analog Devices Inc., a leading company in the semiconductor industry. This device is part of their extensive range of RF amplifiers and is engineered to provide consistent, reliable performance across a wide range of applications, including wireless infrastructure, test equipment, and general-purpose RF amplification.

Key Features

• Frequency Range: The ADL5320ARKZ operates over a broad frequency range from 400 MHz to 4000 MHz, making it extremely versatile for various RF applications.
• High Linearity: It offers high linearity with an OIP3 (Output Third-Order Intercept Point) of 43 dBm, ensuring clear signal amplification with minimal distortion.
• Gain: The device provides a gain of 15.5 dB, which allows for significant signal amplification without the need for additional stages.
• Single Power Supply: The amplifier can be powered by a single 5V supply, simplifying power supply design and reducing system complexity.
• Low Noise Figure: With a low noise figure of 4.5 dB, the ADL5320ARKZ ensures a clean amplification of signals, which is critical for high-performance RF systems.
• Thermal Performance: It is encapsulated in a thermally efficient package, the 3 mm × 3 mm LFCSP (Lead Frame Chip Scale Package), which aids in heat dissipation and improves reliability.

Applications

• Wireless Infrastructure (e.g., base stations for cellular networks)
• RF/IF Gain Blocks in Communication Systems
• CATV Equipment
• Test and Measurement Equipment
• General-Purpose RF Amplification

The ADL5320ARKZ from Analog Devices Inc. is a testament to the company's commitment to providing high-quality components that meet the rigorous demands of modern RF and microwave systems. With its robust design, ease of integration, and excellent performance characteristics, this gain block amplifier is an ideal choice for designers looking to enhance their RF signal chain with minimal effort.
