The ADIN1300CCPZ-R7 from Analog Devices Inc. is a state-of-the-art single port Ethernet physical layer transceiver (PHY) designed for industrial and commercial applications. With its robust design and low power consumption, the ADIN1300 is ideally suited for a wide range of Ethernet connectivity applications.

This Ethernet PHY is designed to support the IEEE 802.3 standard and provides a complete physical layer interface solution with support for 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet protocols. This allows for easy integration into existing network infrastructure while providing the flexibility to support a variety of network speeds.

Key Features

• Energy Efficient: The ADIN1300CCPZ-R7 is designed with energy efficiency in mind, featuring low power dissipation which makes it suitable for power-sensitive applications.
• High Performance: With its high-speed data transfer rates, this Ethernet PHY can handle the demands of high-performance industrial applications.
• Robustness: Engineered to withstand harsh industrial environments, the device includes features such as high ESD protection and wide temperature range operation.
• Flexible Media Interface: It supports MII, RMII, and RGMII media access control (MAC) interfaces, providing versatility for various design requirements.

Applications

The ADIN1300CCPZ-R7 is well-suited for a broad range of applications, including:

• Industrial automation and control systems
• Factory automation networks
• Embedded computing systems
• Building management systems
• Automotive infotainment and advanced driver-assistance systems (ADAS)

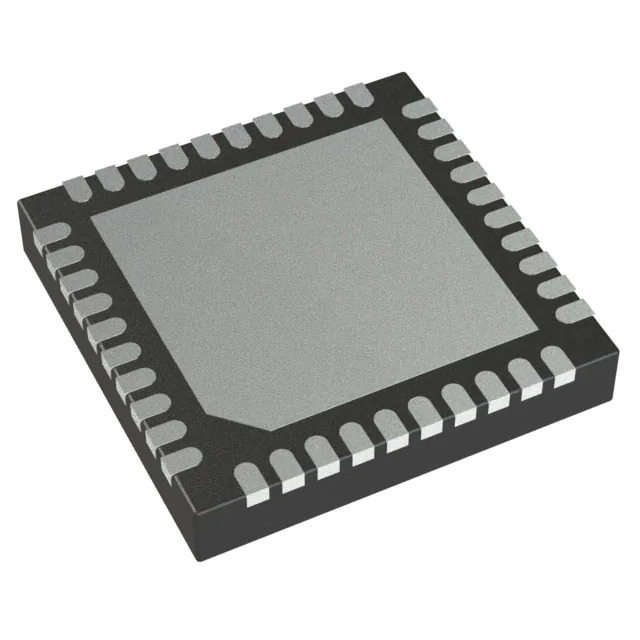

With its compact LFCSP (Lead Frame Chip Scale Package) form factor, the ADIN1300CCPZ-R7 is easy to integrate into various design layouts, minimizing the PCB space required. Its robustness and reliability make it an excellent choice for designers who require a dependable Ethernet PHY for their networked solutions.

For more detailed specifications and application support, please refer to the official datasheet and technical resources provided by Analog Devices Inc.
