ADG1611BRUZ - High-Performance Analog Switch from Analog Devices Inc.

The ADG1611BRUZ is a monolithic CMOS device comprising four independently selectable single-pole, single-throw (SPST) switches, which is a part of the robust product lineup from Analog Devices Inc. This high-performance analog switch is designed to deliver exceptional signal integrity with minimal distortion and is suitable for a wide variety of applications, including data acquisition systems, sample-hold systems, and audio signal routing.

Constructed with Analog Devices Inc.’s cutting-edge IC technology, the ADG1611BRUZ offers a low on-resistance (typically 1.5 Ω) that remains flat over the full analog signal range. This feature ensures excellent linearity and low distortion, making it an ideal choice for precision analog applications. The on-resistance profile is matched between switches to within 0.2 Ω, which simplifies the design process when channel-to-channel matching is critical.

The ADG1611BRUZ operates from a single 1.8 V to 5.5 V supply, providing designers with the flexibility to use the device in a variety of systems without the need for complex power management. The low power consumption of this device, coupled with its wide operating voltage range, makes it an energy-efficient solution for battery-powered portable devices.

Furthermore, the ADG1611BRUZ features a fast switching time (t_ON and t_OFF) of less than 20 ns, ensuring that signals are routed with minimal delay, which is essential for high-speed data acquisition and other time-sensitive applications. The device also boasts a high continuous current capacity of ±200 mA, allowing it to handle larger signal currents when necessary.

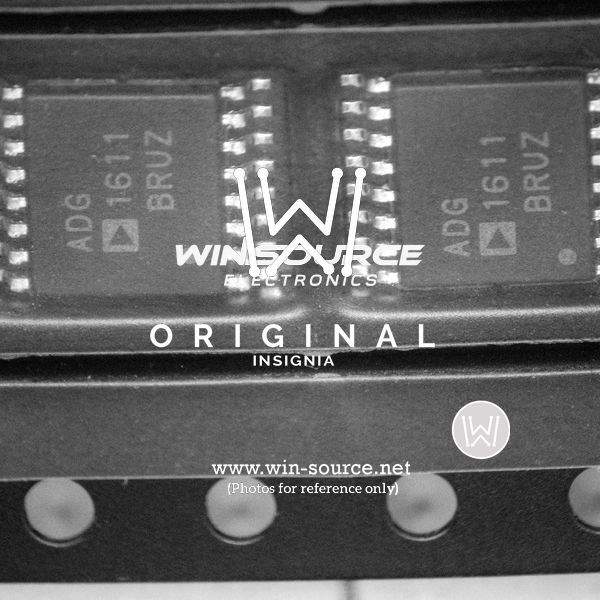

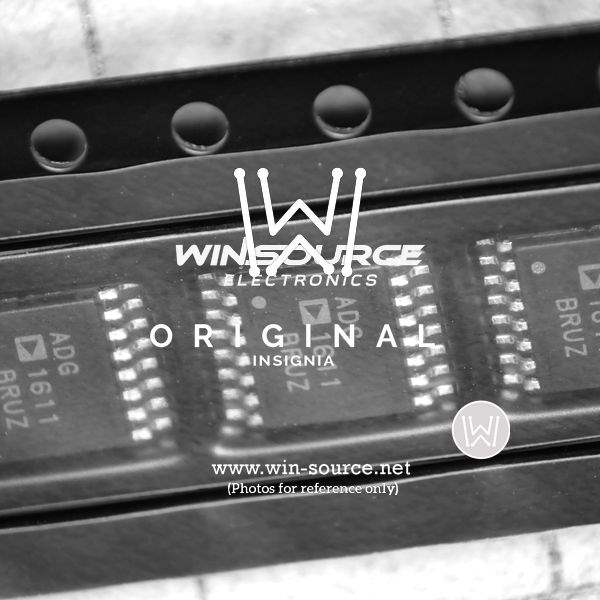

The ADG1611BRUZ is available in a compact TSSOP-14 package, which is optimized for space-constrained applications without compromising performance. Its extended temperature range from -40°C to +125°C enables reliable operation in harsh environments.

In summary, the ADG1611BRUZ from Analog Devices Inc. is a versatile and highly reliable analog switch that offers superior performance for a wide array of applications where signal integrity and speed are paramount. Its low on-resistance, fast switching times, and robust design make it an excellent choice for designers seeking a high-quality, dependable switching solution.
