ADCMP603BCPZ-R2: High-Speed Comparator from Analog Devices Inc.

The ADCMP603BCPZ-R2 is a cutting-edge high-speed comparator manufactured by Analog Devices Inc., designed to deliver fast and reliable performance for a wide range of applications. This comparator is well-suited for systems that require precise voltage monitoring, pulse generation, or time-to-digital conversion, making it a versatile component in the electronics industry.

Key Features:

• Ultrafast Propagation Delay: The device boasts an impressive propagation delay of typically 280 ps, which ensures swift response times in critical applications such as high-speed data acquisition systems and clock and data recovery circuits.
• Low Dispersion: With less than 50 ps of dispersion for input overdrives between 5 mV and 500 mV, the ADCMP603BCPZ-R2 offers consistent performance that is crucial for timing applications.
• PECL and CML Outputs: The availability of both Positive Emitter-Coupled Logic (PECL) and Current Mode Logic (CML) outputs provides flexibility in interfacing with various logic families, enhancing the device's adaptability.
• Adjustable Hysteresis: Users can adjust the hysteresis to optimize performance for different signal conditions, improving noise immunity and reducing false triggering.
• Single Supply Operation: Operating on a single 3.3 V supply, the ADCMP603BCPZ-R2 simplifies power supply design and conserves power in portable and battery-powered applications.
• Input Range: The comparator's input voltage range extends from 200 mV below ground to 1.5 V below the supply voltage, accommodating a wide range of signal levels.

Applications:

• High-speed signal processing
• Automatic test equipment
• High-frequency or pulse applications
• Clock and data regeneration
• Zero-crossing detectors
• Time-to-digital converters

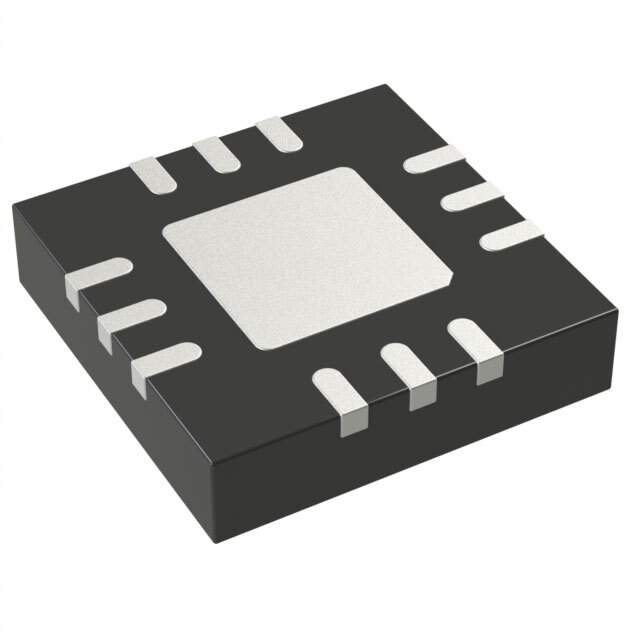

The ADCMP603BCPZ-R2 is housed in a compact, 16-lead LFCSP (Lead Frame Chip Scale Package) that minimizes board space and is suitable for high-density mounting. This package also provides excellent thermal performance, ensuring the device operates within its specified temperature range even under high-speed conditions.

Analog Devices Inc. is known for its commitment to quality and reliability, and the ADCMP603BCPZ-R2 is no exception. It is designed to meet the stringent requirements of industrial and commercial applications, offering both precision and speed to designers looking to enhance their systems' performance.
