The ADA4302-4ACPZ-RL7 is a high-performance, quad-channel active RF splitter from Analog Devices Inc., designed to distribute a single input signal to four isolated outputs with exceptional linearity and minimal noise. This device is an ideal choice for a variety of RF and IF applications, including cable TV equipment, satellite set-top boxes, and telecommunications systems.

Key Features:

• Frequency Range: The ADA4302-4ACPZ-RL7 operates over a broad frequency range, making it versatile for multiple RF applications.
• Isolation: It provides excellent isolation between outputs, ensuring that signal integrity is maintained across all channels.
• Low Distortion: The device offers low distortion, which is critical for maintaining the quality of the signal in high-performance RF systems.
• High Linearity: With its high linearity, the ADA4302-4ACPZ-RL7 is able to handle a wide dynamic range of input levels without compromising signal quality.
• Integrated Biasing: The integrated biasing circuitry simplifies the design and reduces the need for external components.

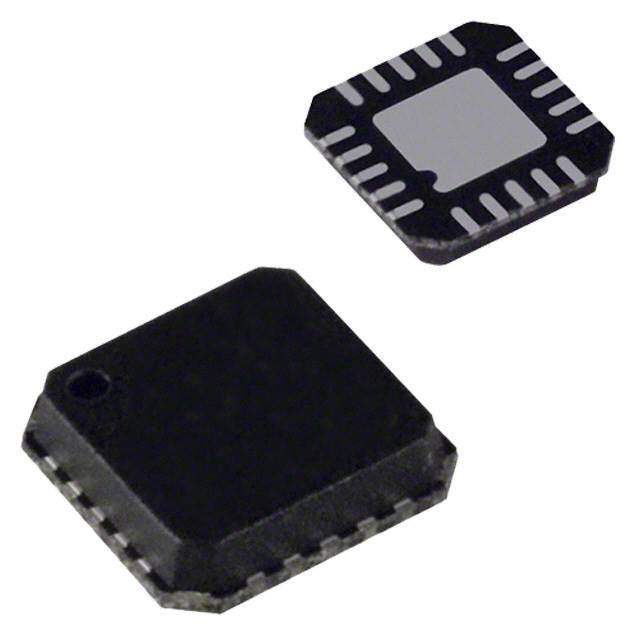

• Surface-Mount Package: The compact LFCSP (Lead Frame Chip Scale Package) allows for efficient use of PCB space and is suitable for high-volume production.

Applications:

• Cable Television (CATV) Systems
• Satellite Set-Top Boxes
• Telecommunications Infrastructure
• RF and IF Distribution Networks

Product Specifications:

With its robust design and high-quality performance, the ADA4302-4ACPZ-RL7 from Analog Devices Inc. is a reliable solution for distributing RF signals with precision and accuracy.
