The AD9959BCPZ-REEL7 is a state-of-the-art, high-performance, quad-channel Direct Digital Synthesizer (DDS) integrated circuit produced by Analog Devices Inc. This powerful component is designed for applications requiring complex waveform generation and precise frequency control, making it an ideal choice for a wide range of industries, including communications, instrumentation, and defense.

Key Features

• Four DDS Channels: Equipped with four independent DDS channels, the AD9959 allows for multiple frequency outputs simultaneously, providing flexibility for complex signal generation.
• High-Speed Serial I/O: The device features a high-speed serial I/O port for convenient interfacing with microprocessors or digital signal processors.
• Programmable Modulation: It supports a variety of modulation schemes, including amplitude, phase, and frequency modulation, enabling dynamic signal control.
• Wide Frequency Range: The AD9959 operates over a broad frequency range, making it suitable for generating a wide spectrum of signals.
• Fine Frequency Resolution: With its high-resolution capabilities, the AD9959 can generate frequencies with very fine granularity, essential for precision applications.

Applications

The AD9959BCPZ-REEL7 is versatile and can be used in numerous applications such as:

• Complex waveform generation
• Agile RF/IF local oscillator generation
• Phase-locked loops (PLLs)
• Test and measurement equipment
• Software-defined radio
• Beamforming

Package and Quality

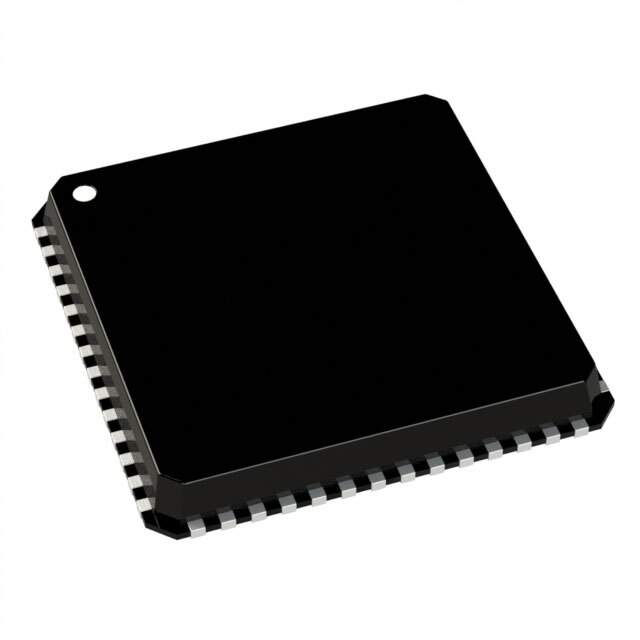

The device comes in a compact 56-lead LFCSP (Lead Frame Chip Scale Package) that is suitable for space-constrained applications. The "REEL7" designation indicates that this product is available in tape and reel packaging, which is ideal for automated manufacturing processes. Analog Devices Inc. ensures that this product meets high-quality standards, providing reliable performance for critical applications.

Conclusion

In summary, the AD9959BCPZ-REEL7 from Analog Devices Inc. is a powerful and versatile DDS that offers high performance, multiple channels, and programmable modulation capabilities. Its broad frequency range and fine resolution make it an excellent choice for designers looking to create sophisticated and precise electronic systems.
