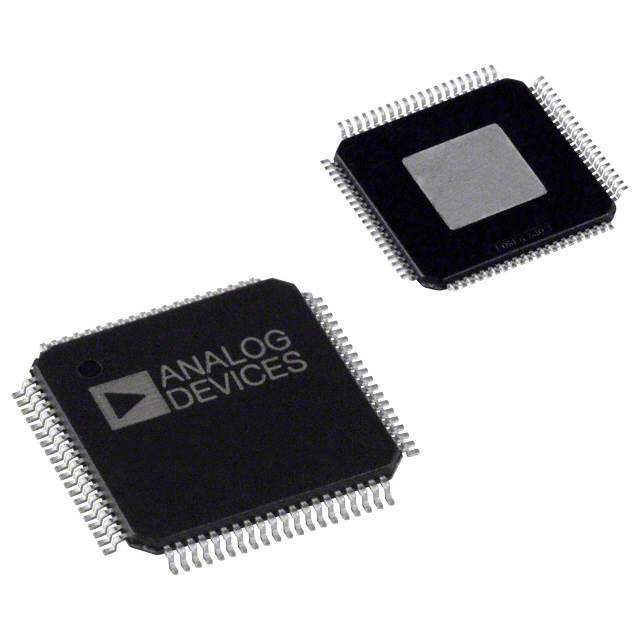

AD9777BSVZRL - Dual 16-bit DAC from Analog Devices Inc.

The AD9777BSVZRL is a high-performance, dual 16-bit digital-to-analog converter (DAC) from Analog Devices Inc., designed to meet the demanding needs of communication systems and signal generation applications. This integrated circuit provides an excellent combination of high-speed operation and outstanding dynamic performance, making it an ideal choice for applications such as base station development, cable modem termination systems, and broadband wireless access points.

Key Features:

• High Resolution: The device boasts a 16-bit resolution which ensures precise signal representation, allowing for accurate signal processing and generation.
• High-Speed Interface: With an update rate of up to 400 MSPS (mega samples per second), the AD9777BSVZRL is capable of handling high-speed data streams, making it suitable for advanced communication systems.
• Dual DAC Channels: The inclusion of two DAC channels provides the flexibility for complex signal generation and can be used for I/Q modulation schemes commonly used in modern communication systems.
• Integrated Interpolation Filters: The device includes 2x, 4x, and 8x interpolation filters, which help to reduce the data rate required on the input side while maintaining high output frequencies.
• Flexible Clocking Options: It supports a variety of clocking configurations, including a dual-port interface for independent I and Q channel data, as well as a single-port interface with time-multiplexed data.
• Adjustable Full-Scale Output Current: Ranging from 2 mA to 20 mA, this feature allows for fine-tuning of the output signal power to match system requirements.

Applications:

• Wireless and Wired Broadband Communication
• IF and Baseband Signal Generation
• Direct Digital Synthesis (DDS)
• High-Resolution Imaging Systems
• Test Equipment and Instrumentation

With its robust feature set, the AD9777BSVZRL from Analog Devices Inc. represents a versatile and efficient solution for generating high-quality analog signals from digital data streams. Its high integration level, combined with superior performance, simplifies design and reduces time-to-market for a wide range of high-speed data conversion and signal generation applications.
