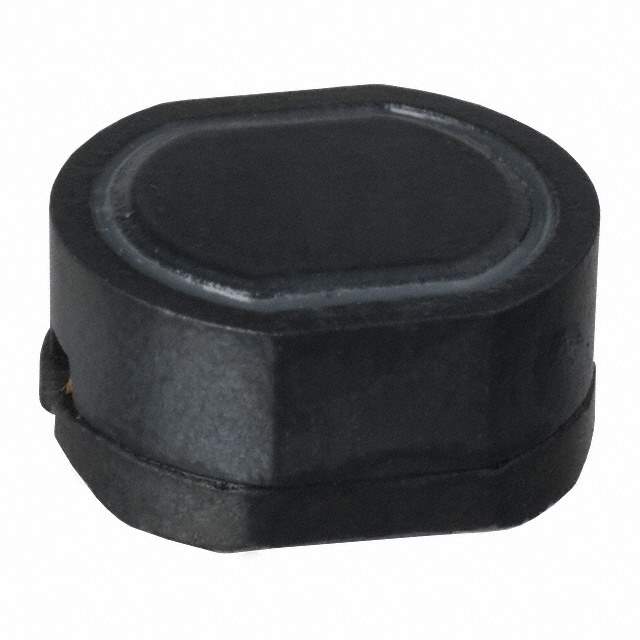

PM105SB-560L-RC Real Image
Same model may have multiple batches, images only for reference.

PM105SB-560L-RC

Part No PM105SB-560L-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 56UH 930MA 190 MOHM
Datasheet
PM105SB-560L-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 56μH
Tolerance ±15%
Current Rating 930mA
DC Resistance (DCR) 190 mOhm Max
Q @ Freq 26 @ 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.189" (4.80mm)
Win Source Part Number 108691-PM105SB-560L-RC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PM105SB-560L-RC CAD Model

Description

The PM105SB-560L-RC wirewound inductor has an inductance of 56μH and a current rating of 930mA.

  • Inductance: 56μH
  • Current Rating: 930mA
  • Package: Reel-TR
  • Mounting: SMD (SMT)
  • Tolerance: ±15%
  • Q @ Freq: 26 @ 2.52MHz
  • Frequency - Self-Resonant: 11MHz
  • Frequency - Test: 100kHz
  • Height: 0.189" (4.80mm)
  • Core Material: Ferrite
  • ECCN: EAR99
  • REACH: Unaffected
  • Supply and Demand: Balance
  • Manufacturer: Bourns Inc.
